Dialing in the right Miller TIG welder settings for stainless steel can be the difference between a clean, shiny bead and a weld that overheats, sugars, or loses corrosion resistance. I’ve spent plenty of time tweaking amperage, gas flow, and pulse settings trying to get stainless to behave — and it definitely doesn’t forgive sloppy setup.
Stainless runs hotter than mild steel, so heat control, arc control, and proper joint prep are critical, especially when you’re working with thin material or cosmetic welds. A lot of welders get confused about where to start with amperage, whether to use pulse, or how settings change compared to MIG vs TIG welding.
Getting this right matters for weld quality, strength, and avoiding costly rework on stainless projects. In this guide, I’ll break down the exact Miller TIG settings I use for stainless steel and explain how to fine-tune them for smooth puddle control and professional results.

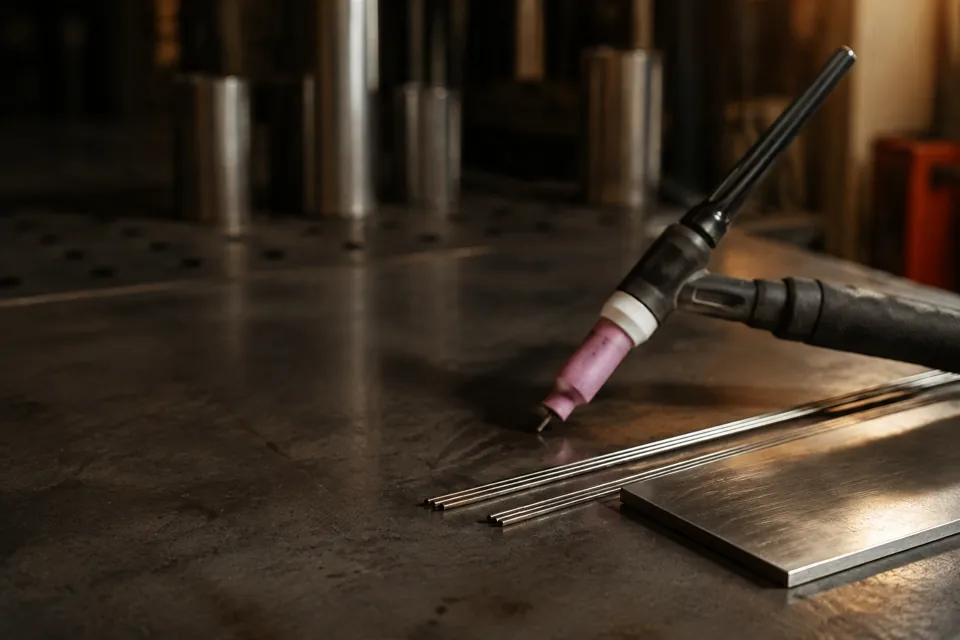

Image by thefabricator
Understanding Stainless Steel in TIG Welding
Stainless steel isn’t just one thing—it’s a family of alloys that bring chromium and nickel into the mix for that shiny, rust-proof finish. When you’re TIG welding it, you have to think about how these elements react to heat. Too much, and you’ll get carbide precipitation, which weakens the corrosion resistance.
I’ve welded everything from 304 austenitic grades in food processing equipment to 316 in marine applications, and each one behaves a bit differently under the torch.
Why does this matter? In real-world scenarios, like building a custom exhaust for a truck or repairing brewery tanks, the wrong approach leads to failures that cost time and money. TIG welding, or tungsten inert gas, shines here because it gives you precise control over the heat input, minimizing distortion and keeping those alloys intact.
Types of Stainless Steel You’ll Encounter
Let’s start with the basics: austenitic, ferritic, martensitic, and duplex. Austenitic like 304 and 316 are the most common for TIG—non-magnetic, easy to form, but they expand a lot with heat, so you need lower amps to avoid warping.
I remember my first big job on a 304 sheet for a restaurant hood; I didn’t account for the expansion, and the whole piece twisted like a pretzel. Lesson learned: always preheat if needed, but sparingly.
Ferritic types, like 409 used in automotive exhausts, are magnetic and cheaper, but they’re prone to grain growth if overheated. Martensitic, think 410 for knives or tools, hardens with heat, so post-weld treatment is key. Duplex, blending austenitic and ferritic, offers strength for oil rigs or chemical plants, but requires balanced heat to avoid phase imbalances.
For US welders, stick to AWS classifications—know your base metal’s grade from the mill certs. This ties directly into your Miller settings: higher chromium means more sensitivity to oxidation, so purge gas becomes crucial.
Why Choose TIG for Stainless Steel
TIG welding stainless steel beats other processes hands down for quality. With MIG, you risk spatter and less control; stick welding can introduce slag inclusions. TIG lets you feed filler manually, controlling the puddle for clean, precise beads. In my shop, I use it for thin gauges where fusion without filler is possible, or thicker joints needing ER308 rods.
It’s ideal when appearance matters, like ornamental railings or sanitary piping in food industries. Safety-wise, the low heat reduces fume generation compared to flux-cored, aligning with OSHA guidelines for ventilation. Cost-efficient too—less rework means less filler wasted. If you’re a student or hobbyist, starting with TIG builds skills that transfer to pros.
Setting Up Your Miller TIG Welder for Stainless
Miller welders are my go-to—reliable, user-friendly, with models like the Dynasty series offering AC/DC versatility. Before touching settings, ensure your machine’s calibrated. I’ve had units drift over time, leading to inconsistent arcs, so check voltage and amperage outputs regularly.
Plug in, ground properly, and select DCEN for most stainless—negative electrode for deeper penetration. For aluminum contaminants, switch to AC, but that’s rare here. Gas flow: argon at 15-20 CFH shields the weld from oxygen, preventing sugaring on the back side.
Essential Controls on Miller TIG Machines
Every Miller TIG has key dials: amperage, pulse, balance, and frequency. Amperage controls heat—start low, like 50-80 amps for 1/16-inch stock. Pulse settings: I love pulsing at 1-2 PPS for thin material, reducing heat input by half while maintaining penetration.
Balance on AC models adjusts cleaning vs. penetration—70% EN for stainless hybrids. Frequency: 60-120 Hz narrows the arc for precision. On my Dynasty 210, I tweak these based on joint type: butt joints need steady amps, fillets more pulse.
Practical tip: Always test on scrap. I once skipped this on a 316 pipe and burned through—wasted a whole section. Clean your tungsten—2% thoriated or lanthanated, sharpened to a point for DC.
Recommended Settings for Different Thicknesses
For thin stainless, say 0.030-inch sheet, set amps to 30-50, no pulse needed if you’re steady-handed. Gas post-flow 10 seconds to cool the tungsten. Medium, 1/8-inch: 80-120 amps, pulse at 1 PPS to control the puddle.
Thick stuff, over 1/4-inch: ramp up to 150-200 amps, with upslope/downslope to avoid craters. Here’s a quick comparison table for Miller settings on 304 stainless:
| Thickness | Amperage Range | Pulse (PPS) | Gas Flow (CFH) | Filler Rod |
|---|---|---|---|---|
| 0.030″ | 30-50 | None | 15 | ER308 1/16″ |
| 1/16″ | 50-80 | 1-2 | 18 | ER308 3/32″ |
| 1/8″ | 80-120 | 1 | 20 | ER308 1/8″ |
| 1/4″ | 120-180 | 0.5-1 | 22 | ER308 5/32″ |
| 1/2″ | 180-250 | 0.5 | 25 | ER308 3/16″ |
Adjust for grade—316 needs slightly lower amps due to molybdenum. Pros: These keep distortion low. Cons: High amps on thin material cause burn-through.
Step-by-Step Guide to TIG Welding Stainless Steel with Miller
Let’s walk through this like I’m showing you in the shop. First, prep: Clean the stainless with acetone or a dedicated cleaner—no oils or you’ll get porosity. Bevel edges for thicker joints—30 degrees for butt welds.
Step 1: Set up machine—DCEN, argon, tungsten prepped. Clamp work to table for grounding.
Step 2: Strike the arc—foot pedal or lift start to avoid contamination. Hold torch at 15-20 degrees, tungsten 1/8-inch from work.
Step 3: Form the puddle—start at low amps, increase as needed. Dab filler if using, matching base metal.
Step 4: Travel—steady speed, 4-6 inches per minute. Watch for color: straw to blue means good heat; black is too hot.
Step 5: End the weld—downslope amps, post-flow gas. Inspect: No cracks, full penetration.
I recall teaching a student this on a Miller Syncrowave—he rushed the travel, got cold laps. Slow down, breathe, and let the machine do its job.
Joint Preparation Techniques
Joint prep is half the battle. For sheets, square edges work; pipes need V-grooves. Use a grinder or plasma for clean cuts—burrs cause inclusions. Back purge for full penetration welds: tape the back, flow argon inside.
In US codes like ASME, root passes must be fused properly. Tip: For hobbyists, practice on T-joints first—common in frames.
Choosing the Right Filler Metals
Filler rods: ER308 for 304, ER316 for 316. Diameter matches thickness—thinner for control. Store them clean—moisture leads to hydrogen cracking.
Pros of matching fillers: Maintains corrosion resistance. Cons: More expensive than carbon steel rods. Anecdote: I used the wrong filler on a saltwater tank once—corroded in months. Always double-check.
Common Challenges in TIG Welding Stainless
Stainless loves to warp—high expansion coefficient. Solution: Tack weld frequently, alternate sides. Oxidation: Sugaring looks like crystals—purge properly.
Porosity from dirt or gas issues—check hoses for leaks. I’ve fixed this by swapping regulators mid-job. Cracking: Preheat to 200°F for thicker martensitic, cool slowly.
Troubleshooting Distortion and Warping
Distortion hits when heat’s uneven. Use clamps or fixtures. For long seams, stitch weld—short bursts. On a bike frame project, I ignored this and ended up straightening for hours. Pro tip: Water-cooled torches help on long runs.
Dealing with Contamination and Oxidation
Contamination? Tungsten dips or dirty filler. Grind it out, restart. Oxidation: Increase gas coverage with larger cups. In humid shops, desiccant on gas lines helps.
Advanced Tips for Pro-Level Welds
Once basics are down, tweak for applications. For food-grade, use ER308LSi for smoother flow. Pulse for stacked dimes look— aesthetics in custom work.
In automotive, lower heat preserves chrome. Students: Log your settings—build a cheat sheet. Industry workers: Calibrate to AWS D1.6 for stainless.
Pulsed TIG Settings for Better Control
Pulse: High peak amps for penetration, low background for cooling. On Miller, set peak 150%, background 30%. Great for thin-to-thick transitions.
Pros: Reduces heat-affected zone. Cons: Slower if overdone. I use it on exhaust manifolds—prevents cracking.
Post-Weld Treatments for Stainless
Pickle and passivate: Acid bath removes scale, restores chrome oxide layer. For DIY, vinegar works mildly. Heat treat martensitic for hardness.
In shops, bead blasting cleans without chemicals. Safety: Gloves, ventilation—fumes are no joke.
Safety Considerations in the Workshop
Safety first—always. PPE: Helmet with proper shade (10-13 for TIG), gloves, respirator for fumes. Stainless hexavalent chrome is carcinogenic—extractor fans mandatory per OSHA.
Electrical: Ground everything, avoid wet floors. Fire watch: Sparks on oily rags ignite fast. I’ve seen shops burn from negligence—keep extinguishers handy.
Essential Gear for TIG Welding Stainless
Miller helmet, leather apron, respirator with P100 filters. Tools: Angle grinder, files, purge kits. Invest in quality—cheap gas lenses fail mid-weld.
Real-World Applications and Case Studies
In fabrication, TIG stainless for brewery tanks—sanitary welds prevent bacteria. Hobbyists: Custom grills, no leaks. Pros: Aerospace parts demand perfection.
One case: Welding a 316 manifold for a boat—settings at 100 amps, pulsed, perfect seal against salt. Another: Student project on 304 brackets—low amps avoided burn-through.
Automotive Exhaust Systems
For headers, use 409, 80 amps, ER70S filler sometimes for cost. Back purge essential. Tip: Mock up with clamps before final weld.
Food and Pharmaceutical Equipment
316L, low carbon to avoid sensitization. Settings: 60 amps on thin tubes, no filler for autogenous. Cleanliness is king—dedicated brushes.
Conclusion
You’ve now got the tools to tackle Miller TIG welder settings for stainless steel with confidence. From understanding material types to dialing in amps and pulse, these insights ensure your welds are strong, clean, and ready for the real world—whether it’s a hobby project or a pro job. You’re better prepared because you know the whys behind the settings, avoiding costly mistakes like warping or weak joints.
Always start with a test piece matching your project; it’s saved me more times than I can count. Keep practicing, and your beads will stack like a pro.
FAQ
What are the best starting amps for TIG welding 1/8-inch stainless steel?
For 1/8-inch 304 or 316, kick off at 80-100 amps on DCEN with your Miller. Adjust based on travel speed—faster needs more heat. Test on scrap to fine-tune, and use pulse if heat builds up.
How do I prevent sugaring on the back of stainless welds?
Sugaring happens from oxygen exposure—back purge with argon at 5-10 CFH. Tape the joint, use solar flux if purging’s tough. Keep gas flowing post-weld to cool without oxidation.
Can I TIG weld stainless without filler rod?
Yes, for thin gauges under 1/16-inch, autogenous welding works if edges are tight. But for strength, add filler like ER308. It’s great for quick tacks, but test penetration.
What’s the difference between AC and DC for stainless TIG?
DCEN is standard for penetration on stainless. AC cleans oxides, useful if there’s aluminum traces, but rare. Stick to DC unless your Miller manual specifies otherwise for hybrids.
How often should I clean my tungsten for stainless welding?
Every few welds, or when contaminated. Grind lengthwise to a point—don’t cross-contaminate with steel wheels. A dedicated grinder keeps things pure.
