Selecting the correct welding lead size for pipeline work directly impacts weld quality, equipment performance, and job site safety. Pipeline welding demands specific cable requirements due to the high amperage, extended arc time, and challenging field conditions typical in this specialized trade.
This guide covers everything you need to know about choosing welding leads for pipeline applications, including sizing calculations, environmental considerations, and practical field recommendations from experienced pipeline welders.
Quick Answer: Pipeline Welding Lead Requirements
For most pipeline welding applications, use #2 AWG welding cable for runs up to 100 feet, and #1/0 AWG for runs between 100-150 feet. High-amperage root pass work (300+ amps) typically requires #2/0 AWG cable regardless of distance. Always verify voltage drop calculations and consider environmental factors like temperature and cable routing when making final selections.

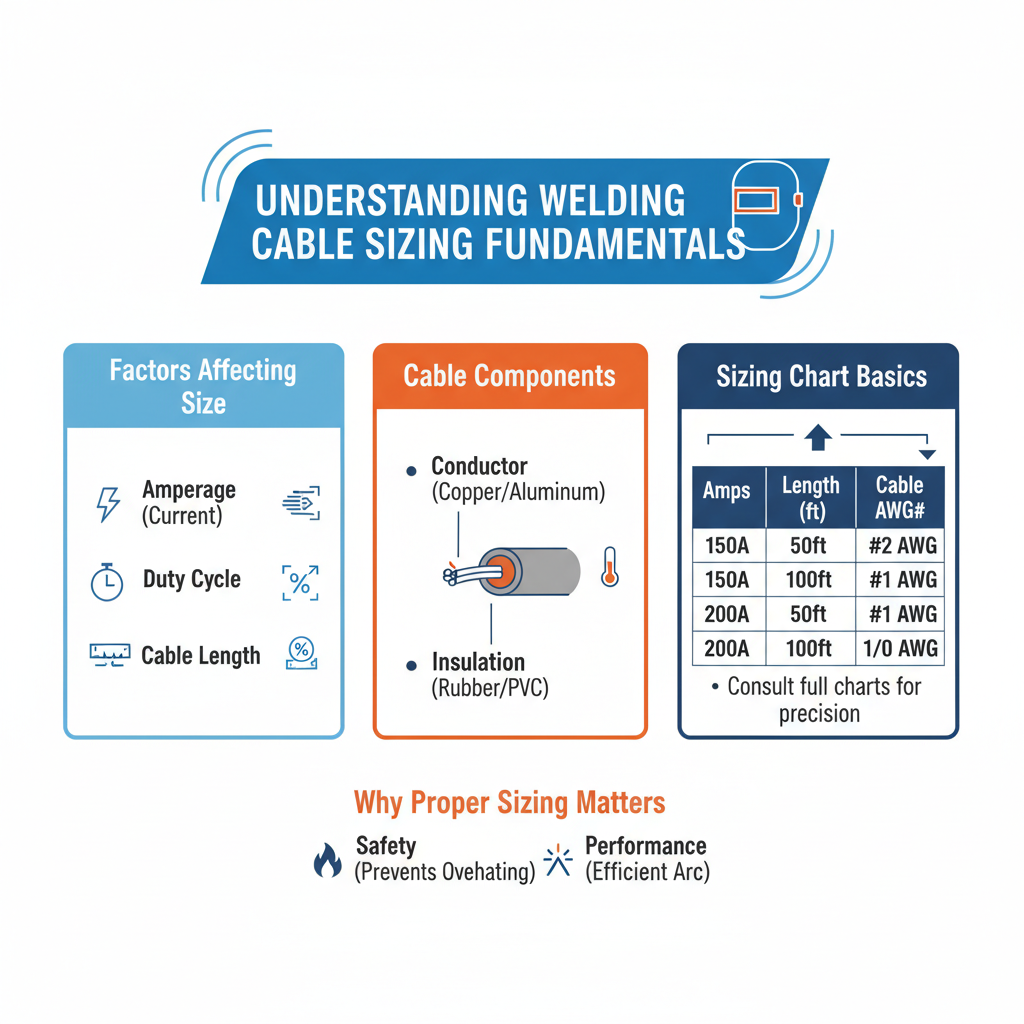

Understanding Welding Cable Sizing Fundamentals
Welding cable size directly affects voltage delivery to the arc. Pipeline welding requires consistent voltage to maintain proper penetration and bead profile throughout long welds.
Cable size is measured by American Wire Gauge (AWG), where smaller numbers indicate larger conductors. A #2 AWG cable has more copper than a #4 AWG cable, allowing higher current capacity with less voltage drop.
Voltage drop occurs when electrical resistance in the cable reduces the voltage reaching the welding arc. Excessive voltage drop causes poor arc characteristics, incomplete penetration, and inconsistent weld quality.

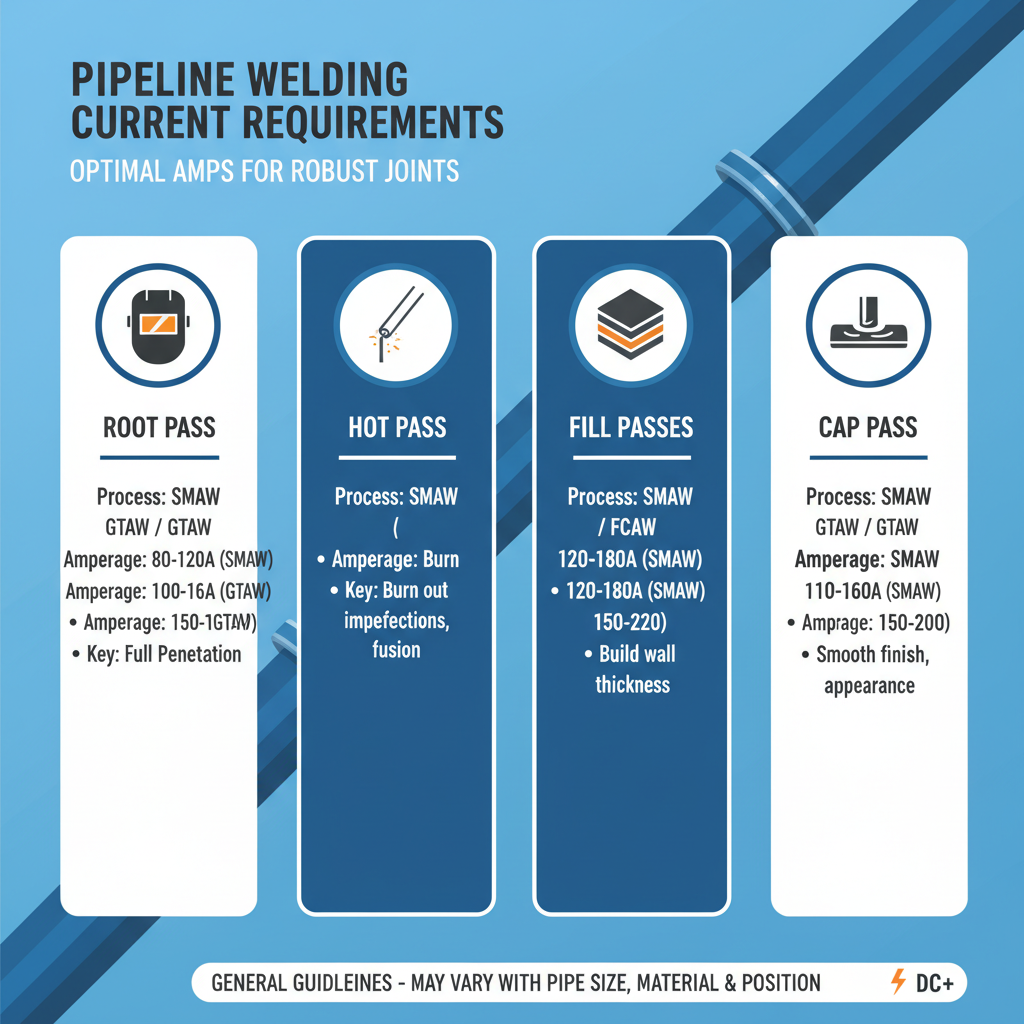

Pipeline Welding Current Requirements
Pipeline welding typically operates in these amperage ranges:
Root Pass: 80-120 amps for 6G position work
Hot Pass: 110-140 amps for tie-in procedures
Fill Passes: 140-180 amps for production welding
Cap Pass: 120-160 amps for final cosmetic passes
Cellulose electrodes commonly used in pipeline work (like E6010) require higher open circuit voltage and stable arc characteristics. This makes proper cable sizing even more critical than with other welding processes.
Field experience shows that undersized cables cause arc wandering and difficulty maintaining consistent penetration, especially during root pass work where precision is essential.
Cable Length Impact on Performance
Distance between the welding machine and work significantly affects cable size requirements. Longer cables create more resistance, requiring larger conductors to maintain proper voltage.
50 feet or less: #4 AWG typically sufficient for most pipeline work
50-100 feet: #2 AWG recommended for consistent performance
100-150 feet: #1/0 AWG necessary to prevent voltage drop issues
150+ feet: #2/0 or larger required, or consider relocating power source
Pipeline construction often requires welding at considerable distances from the power source due to right-of-way restrictions and equipment positioning. Planning cable runs during job setup prevents performance issues later.
Environmental Factors in Cable Selection
Pipeline welding occurs in harsh outdoor conditions that affect cable performance and longevity. Temperature extremes, moisture, and abrasive surfaces all impact cable requirements.
Cold Weather Considerations:
Copper conductors have higher resistance at low temperatures, effectively reducing cable capacity. In sub-freezing conditions, consider upgrading one cable size larger than standard calculations suggest.
Hot Weather Impact:
High ambient temperatures reduce cable ampacity. Summer pipeline work in desert regions may require oversized cables to prevent overheating and insulation damage.
Moisture and Contamination:
Pipeline welding cables must withstand exposure to mud, water, and petroleum products. Choose cables with heavy-duty rubber jackets rated for oil resistance and moisture protection.
Voltage Drop Calculations for Field Applications
Proper voltage drop calculation ensures adequate arc voltage under actual working conditions. The standard formula considers cable resistance, amperage, and circuit length.
Basic Voltage Drop Formula:
Voltage Drop = (2 × Cable Length × Current × Resistance per foot) ÷ 1000
For pipeline welding, limit voltage drop to 4 volts maximum to maintain proper arc characteristics. Higher voltage drops cause unstable arcs and poor weld quality.
Practical Example:
120-amp root pass, 100-foot cable run, #2 AWG cable
Voltage Drop = (2 × 100 × 120 × 0.197) ÷ 1000 = 4.73 volts
This exceeds the 4-volt limit, indicating #1/0 AWG cable would be more appropriate for this application.
Recommended Cable Sizes by Application
Light Pipeline Work (2-4 inch diameter):
– Cable runs under 75 feet: #2 AWG
– Cable runs 75-125 feet: #1/0 AWG
– Maximum amperage: 150 amps
Medium Pipeline Work (6-12 inch diameter):
– Cable runs under 50 feet: #2 AWG
– Cable runs 50-100 feet: #1/0 AWG
– Cable runs over 100 feet: #2/0 AWG
– Maximum amperage: 200 amps
Heavy Pipeline Work (16+ inch diameter):
– All applications: #2/0 AWG minimum
– Long runs or high amperage: #3/0 AWG
– Maximum amperage: 300+ amps
These recommendations account for typical pipeline welding conditions and provide margin for voltage drop and environmental factors.
Cable Construction and Durability Features
Pipeline welding cables endure significant mechanical abuse from dragging across rough terrain, exposure to sharp objects, and repeated flexing during positioning.
Conductor Construction:
Class K stranding provides optimal flexibility for field use. Fine copper strands resist work hardening and maintain conductivity through repeated bending cycles.
Insulation Requirements:
EPDM rubber insulation offers superior resistance to ozone, weathering, and petroleum products common on pipeline projects. Avoid PVC insulation in cold weather applications.
Jacket Protection:
Heavy-duty outer jackets protect against abrasion and cuts. Look for cables rated for extra-hard usage with reinforced jacket construction.
Common Cable Selection Mistakes
Undersizing for Long Runs:
Many welders calculate cable size based only on amperage rating without considering voltage drop over distance. This leads to poor arc performance and weld quality issues.
Ignoring Environmental Factors:
Standard cable ratings assume ideal conditions. Pipeline work requires derating for temperature, moisture, and mechanical stress factors.
Using Inappropriate Cable Types:
Battery cables or automotive wire lack the flexibility and insulation properties needed for welding applications. Always use welding-specific cable construction.
Inadequate Ground Cable Sizing:
The ground cable carries the same current as the electrode cable and requires identical sizing. Undersized ground cables create the same voltage drop problems.
Frequently Asked Questions
What’s the difference between welding cable and battery cable?
Welding cable uses finer copper stranding for better flexibility and specialized rubber insulation designed for arc welding applications. Battery cable has coarser stranding and may use automotive-grade insulation unsuitable for welding.
Can I use aluminum welding cable for pipeline work?
Aluminum cable is not recommended for pipeline welding due to higher resistance, connection reliability issues, and reduced durability in field conditions. Copper cable provides superior performance and longevity.
How do I calculate cable size for DC welding machines?
Use the same voltage drop calculations as AC machines. DC welding may actually require slightly larger cables due to different current characteristics, especially with cellulose electrodes.
What cable size do I need for 300-amp pipeline welding?
For 300-amp applications, use #2/0 AWG minimum for runs under 50 feet, and #3/0 AWG for longer runs. Always verify with voltage drop calculations for your specific setup.
Should electrode and ground cables be the same size?
Yes, both cables carry the same welding current and require identical sizing. Using different sizes creates an imbalance that can affect weld quality and equipment performance.
How often should pipeline welding cables be replaced?
Replace cables when insulation shows cracking, conductors become visible, or flexibility decreases significantly. Typical service life ranges from 1-3 years depending on usage conditions and care.
Can I splice welding cables to extend length?
Splicing is possible but not recommended for pipeline work due to reliability concerns. Splices create additional resistance and potential failure points. Use continuous cables when possible.
Final Thoughts
Proper welding cable sizing is essential for successful pipeline welding operations. The combination of high amperage requirements, extended cable runs, and harsh environmental conditions demands careful attention to cable selection and sizing calculations.
Start with voltage drop calculations based on your specific amperage and distance requirements, then factor in environmental conditions and safety margins. When in doubt, choose the larger cable size to ensure reliable performance throughout the project.
Quality welding cables represent a small fraction of total project costs but directly impact weld quality, productivity, and equipment reliability. Investing in properly sized, heavy-duty cables pays dividends in reduced downtime and consistent welding performance across all pipeline applications.
