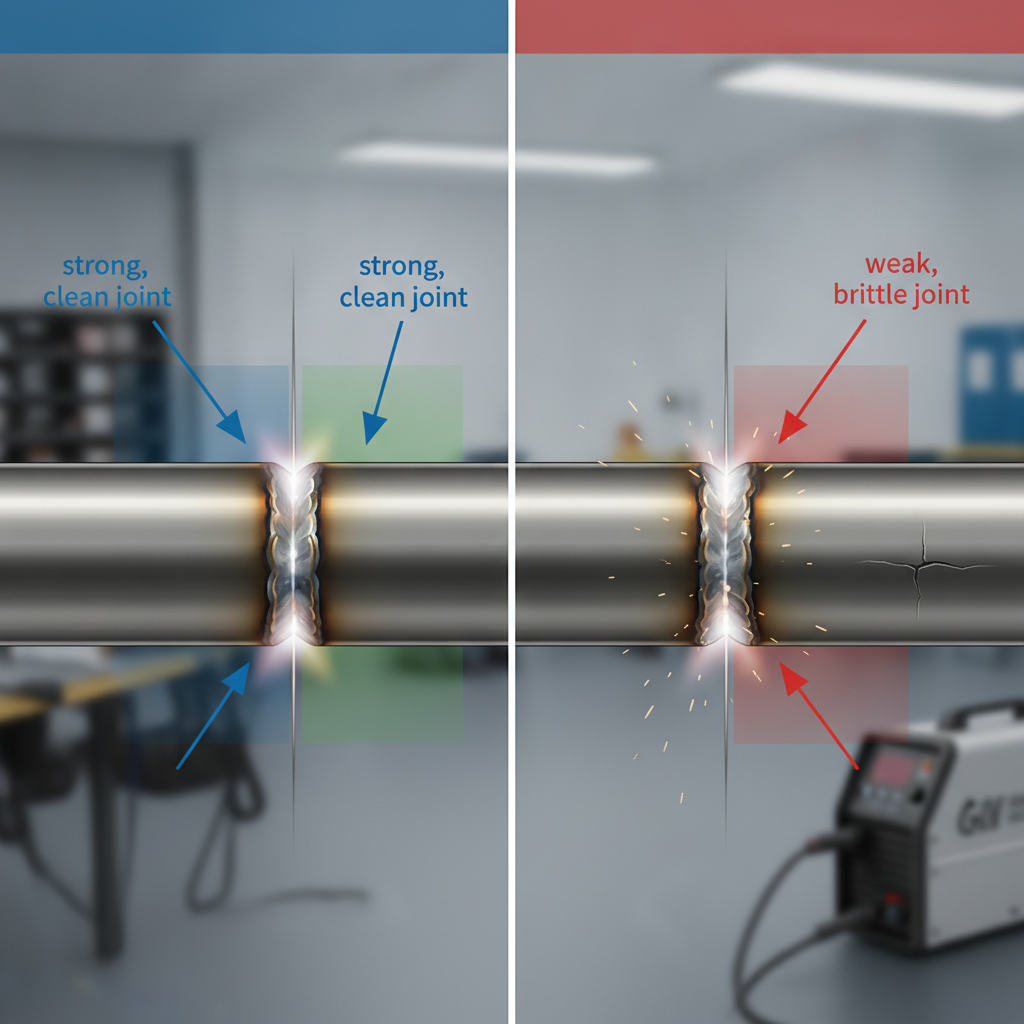

Why MIG Works for Exhaust — and Where It Falls Short

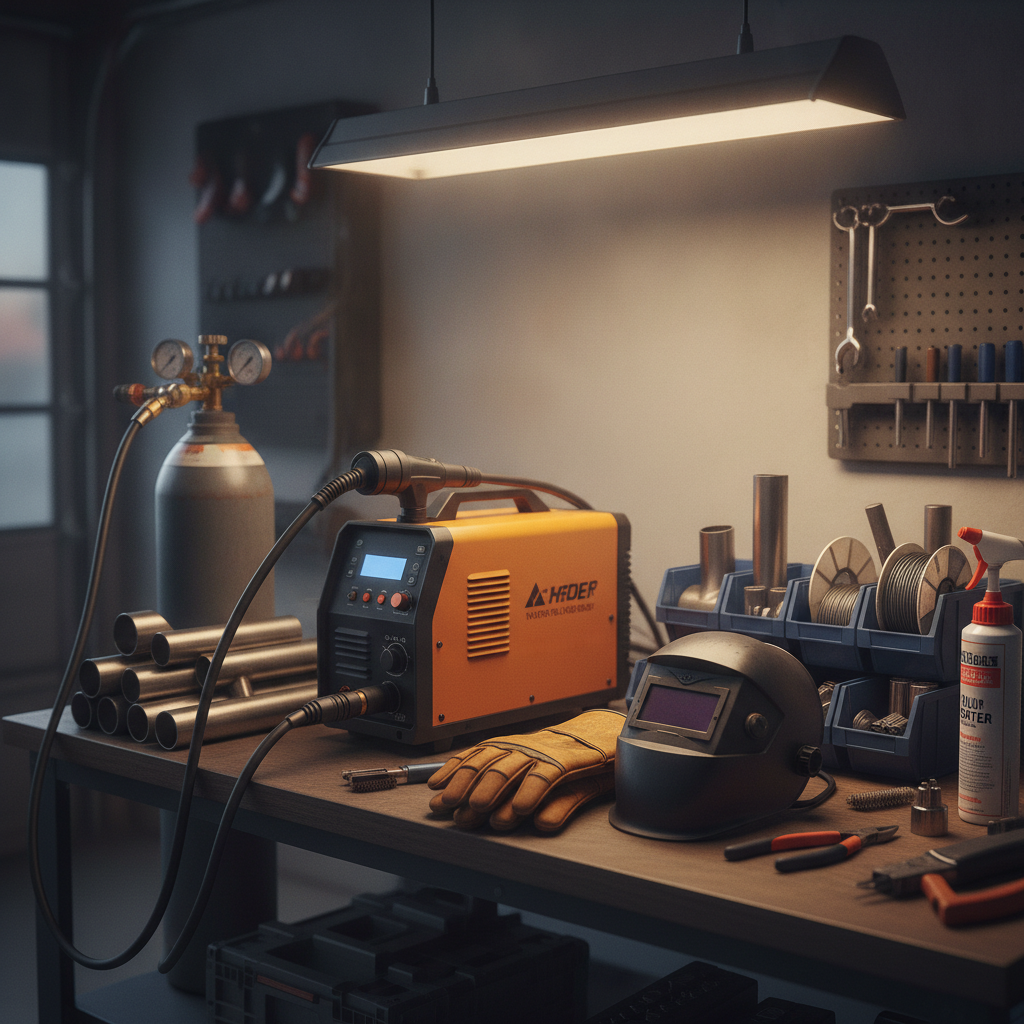

Equipment and Settings Before You Start
Preparing the Pipe — The Step Most People Skip
Exhaust pipe is almost never weld-ready out of the vehicle. Surface contamination is the number one cause of porosity, poor fusion, and failed welds on exhaust work. Before striking an arc: 1. Grind or sand all rust and scale — use a 4.5″ angle grinder with a flap disc or wire wheel 2. Remove any undercoating, paint, or heat wrap from at least 2 inches either side of the weld area 3. Clean with acetone or brake cleaner to remove oil and grease residue 4. Check fit-up — gaps larger than 1/16″ will cause burn-through on thin pipe; close them before welding 5. Tack weld in 3–4 spots to hold alignment before running a full bead Skipping the cleaning step is the most common beginner mistake. Even a thin film of surface rust will cause pinholes in the finished weld.Step-by-Step: How to MIG Weld Exhaust Pipe
Step 1 — Secure the Pipe
Use clamps, a vice, or jack stands to hold the pipe firmly. Movement mid-weld causes cold laps and poor fusion. Work in a position where you can maintain a consistent travel angle without contorting your body.Step 2 — Set Your Machine
Dial in settings for your pipe thickness using the table above. If you’re unsure, start low. It’s easier to add heat than to deal with burn-through. A machine like the Lincoln Electric Weld-Pak 140 works well for this kind of light exhaust work — it has enough voltage range to dial in precisely on thin material.Step 3 — Tack Weld First
Place 3–4 tack welds evenly around the pipe circumference. This locks the joint in position and helps prevent warping as you weld. Keep tacks short — about 1/2 inch.Step 4 — Weld in Short Stitch Passes
Rather than running one continuous bead around the pipe, weld in short 1–2 inch sections and pause to let the metal cool. This is called stitch welding, and it’s the most effective way to control heat on thin exhaust tubing. – Move to opposite sides of the pipe between passes (like tightening lug nuts in a star pattern) – This balances heat distribution and reduces warping – Allow 15–30 seconds between stitches on thinner pipeStep 5 — Maintain Correct Torch Angle
Hold the MIG gun at 5–15 degrees from perpendicular to the pipe. Keep a 3/8″ to 1/2″ contact tip-to-work distance. A shorter stick-out gives more control on thin pipe.Step 6 — Watch the Puddle, Not the Arc
Focus your eyes slightly ahead of the arc and watch how the molten puddle flows into both edges of the joint. If the puddle starts sinking or falling through, you’re moving too slowly — speed up or pause.Step 7 — Complete the Pass and Inspect
After welding, let the pipe cool naturally. Don’t quench it with water — rapid cooling can cause cracking. Once cooled, inspect for: – Pinholes or porosity (caused by contamination or inadequate gas coverage) – Incomplete fusion at the edges – Cracks along the weld bead – Undercut on either side of the joint Minor surface porosity can be ground back and re-welded. Cracks or incomplete fusion need to be fully ground out and redone.Dealing with Pipe Gaps and Fitment Problems
Exhaust flanges and slip joints rarely fit perfectly. A gap over 1.5mm on thin pipe will cause burn-through almost every time with standard settings. A few practical fixes: – Reduce voltage slightly and increase wire feed to bridge small gaps – Use a copper backer bar held behind the gap — molten metal won’t fuse to copper, so it supports the puddle without contaminating the weld – Hammer the pipe slightly to close the gap before tacking – Add a filler piece cut from matching pipe if the gap is too large to bridge MIG welding exhaust without burning through comes down almost entirely to managing gaps, cleanliness, and heat input simultaneously.Welding Stainless Exhaust Pipe with MIG
Performance and aftermarket exhaust systems are often 304 stainless steel. The process changes in a few key ways: – Switch to ER308L wire (for 304 SS pipe) — do not use ER70S-6 on stainless – Use 98% Argon / 2% CO2 or a stainless-specific tri-mix shielding gas – Reduce heat further — stainless retains heat longer than mild steel and warps more easily – Back purge the pipe when possible — flowing argon inside the pipe prevents oxidation (sugaring) on the back side of the weld For detailed settings guidance, MIG welding stainless steel settings require specific adjustments that differ significantly from mild steel work.Common Problems and How to Fix Them
| Problem | Likely Cause | Fix | |—|—|—| | Burn-through holes | Too much heat, slow travel | Reduce voltage, move faster, stitch weld | | Porosity (pinholes) | Contamination or gas issues | Clean metal, check gas flow (15–20 CFH) | | Lack of fusion | Too little heat or too fast | Increase voltage slightly, slow down | | Warping / distortion | Continuous welding, too much heat | Stitch weld, alternate sides | | Cracking | Thermal stress, wrong filler | Use correct wire, allow slow cooling | | Excessive spatter | Voltage too low, bad gas | Adjust voltage/wire balance, check gas mix | On very thin, rusty pipe, porosity is almost unavoidable if the metal isn’t properly prepped. In practice, grinding back to clean base metal before welding solves most quality issues immediately.FAQ
Can you MIG weld exhaust pipe without shielding gas? You can use flux-core wire without external gas, but it’s not ideal for exhaust work. Flux-core produces more spatter, more slag, and a rougher bead — which is harder to manage on thin pipe. If you’re using a flux-core machine like the YESWELDER Flux-135, reduce wire feed and weld in very short stitches to control heat. Gas-shielded MIG gives cleaner, more controlled results on exhaust tubing. What wire size is best for exhaust pipe? For most exhaust pipe repair on standard mild steel (1.5–2mm wall thickness), 0.030″ ER70S-6 is the most practical choice. On thinner tubing or lightweight aftermarket pipe under 1.5mm, drop to 0.023″ wire. The thinner wire melts at lower heat and gives you more control over the puddle on tight joints. How do you weld a cracked exhaust pipe without it cracking again? Grind out the crack completely before welding — if you weld over a crack without removing it, the weld will fail again. V-groove the crack with a grinder to allow full penetration. Weld in short passes, allow cooling between passes, and never quench the weld with water. Thermal fatigue cracks often recur near original stress points, so additional reinforcement or a full section replacement may be more reliable. Why does my exhaust weld keep burning through in one spot? This usually happens at thinned sections — areas where rust has reduced the pipe wall below its original thickness. The metal simply isn’t thick enough to absorb the heat. Reduce voltage as low as the arc will sustain, use 0.023″ wire, and move faster through those sections. If the metal is paper-thin from corrosion, no technique will save it — the section needs to be cut out and replaced. Do I need to back-purge exhaust pipe when MIG welding? For mild steel exhaust pipe, back-purging is not necessary. For stainless steel exhaust pipe, back-purging with argon prevents oxidation (sugaring) on the inside of the weld, which can restrict flow and weaken the joint over time. It’s especially worth doing on performance stainless systems where internal weld quality matters. Is it better to weld exhaust pipe uphill or downhill? Downhill welding works better on thin exhaust pipe. It keeps the puddle moving faster, reduces heat input, and helps prevent burn-through. Uphill welding adds more heat and increases penetration — useful on thick metal but counterproductive on standard exhaust tubing. Keep your travel speed consistent and let the arc lead slightly. What’s the minimum MIG welder size needed for exhaust work? A 90–140 amp MIG welder is sufficient for most exhaust pipe repair. You need enough voltage range to dial down to around 13–16V for thin pipe. Machines in the 140-amp class typically offer fine enough adjustment for this work without overheating the thin metal.Exhaust welding rewards preparation more than raw technique. Clean metal, correct wire, low controlled heat, and short stitch passes handle the majority of situations you’ll encounter. Get those fundamentals right, and the actual welding becomes straightforward — even in the tight spaces that exhaust work usually demands.
