A drawing lands on your bench showing a fillet weld symbol, but instead of one size, there are two different numbers separated by an “x.” If you’re not sure what that means or how to lay down that weld correctly, this article breaks it down clearly.
When a fillet weld symbol shows two different leg sizes — for example, 3/8 x 1/4 — it means the weld is intentionally unequal. One leg runs along one member at the larger dimension, and the other leg runs along the mating member at the smaller dimension. This is called an unequal-leg fillet weld, and the symbol specifies both leg sizes in the format “Z1 x Z2” placed to the left of the weld symbol.

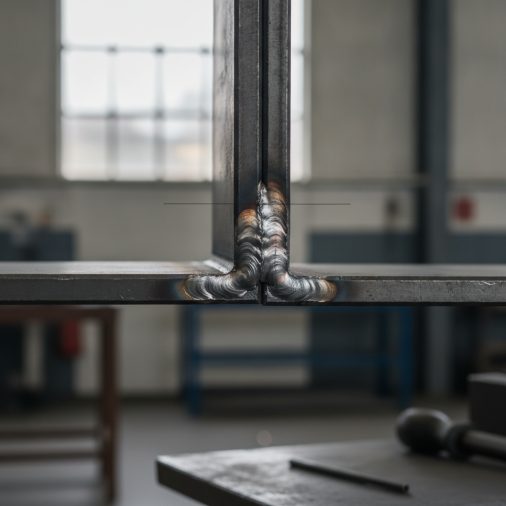

What Makes a Fillet Weld “Unequal”
A standard fillet weld has two equal legs and a roughly 45-degree face angle. The leg size is the same on both members, which is why a single number on the symbol is enough to define it.
An unequal-leg fillet weld deliberately changes that geometry. One leg is longer than the other, which shifts the face angle away from 45 degrees. The result is a weld that carries load differently depending on the direction it acts on the joint.
This geometry comes up more often than many welders expect — particularly in structural connections, bracket attachments, and situations where the available weld area on one member is limited by plate thickness or fit-up constraints.

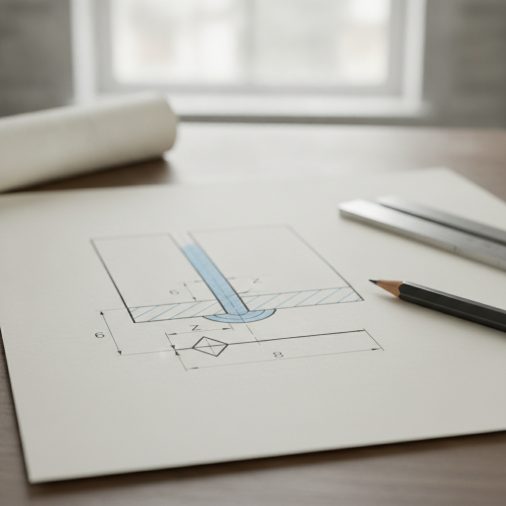

How the Symbol Is Written on a Drawing
AWS welding symbol conventions specify unequal fillet weld legs using two dimensions separated by a multiplication sign. The notation sits to the left of the triangular fillet weld symbol on the reference line.
Here is how to read it:
– First dimension: the leg size on the member corresponding to the arrow side or other side (as indicated on the drawing)
– Second dimension: the leg size on the other member
– Example: 1/2 x 3/8 means one leg is 1/2 inch and the other is 3/8 inch
The arrow on the symbol tells you which member gets the first-listed leg size when the drawing specifies that relationship explicitly. If you are unsure which leg goes where, check the joint detail drawing or fabrication notes — reading the symbol without understanding the joint orientation can lead to the wrong weld profile. For a broader look at how AWS welding symbols work across different weld types, that foundational knowledge makes the rest of the symbol system much easier to navigate.
Why Engineering Calls for Different Leg Sizes
There are a few practical reasons a designer might specify unequal legs rather than a standard equal-leg fillet.
Load direction. A longer leg in the direction of the primary load increases the throat dimension in that plane, adding strength where it matters most without requiring a larger overall weld on both members.
Plate thickness constraints. The maximum fillet weld leg size on a given plate edge is generally limited by the plate thickness. If one member is thinner, a smaller leg on that side respects the material limits while a larger leg on the thicker member still provides the required strength. Understanding how maximum fillet weld size relates to plate thickness directly affects how you interpret and execute these unequal-leg callouts.
Access and geometry. Sometimes the physical joint geometry or weld access makes equal legs impractical. An unequal-leg specification accommodates the real-world constraint rather than forcing a geometry that cannot be deposited cleanly.
Stress distribution. In some connections, spreading the weld face asymmetrically reduces stress concentration at the toe on one side of the joint.
Effective Throat on an Unequal-Leg Fillet Weld
The throat of a fillet weld is the critical dimension for strength calculations. For an equal-leg fillet, the effective throat is simply 0.707 multiplied by the leg size.
For an unequal-leg fillet, the throat is still measured as the perpendicular distance from the root to the face of the weld. The calculation changes because the face angle is no longer 45 degrees.
For legs Z1 and Z2, the effective throat is:
> Throat = (Z1 × Z2) ÷ √(Z1² + Z2²)
This value will be smaller than what you would calculate if you assumed the larger leg size was the only dimension. A weld that looks larger in one direction is not necessarily stronger overall — the asymmetric geometry reduces the throat relative to the larger leg. If you need to calculate fillet weld strength for a joint like this, using the correct throat value for unequal legs is essential.
Depositing an Unequal-Leg Fillet Weld Correctly
Reading the symbol correctly is only part of the job. The real challenge is laying down a weld with the leg sizes the drawing requires — and doing it consistently.
Torch or electrode angle. For an equal-leg fillet, the standard work angle is typically 45 degrees between the two members. For an unequal-leg fillet, you need to bias the angle toward the member with the longer leg. A larger leg on the horizontal member, for example, means directing more heat and filler in that direction, which requires a flatter work angle.
Travel speed and weave. A slight weave or pause toward the longer-leg side helps build the required fill without overheating the shorter-leg side. Rushing through the bead uniformly tends to produce something closer to an equal-leg profile.
Multi-pass considerations. On larger unequal-leg fillets, multi-pass sequences may be needed. The root pass should penetrate the joint corner properly, and subsequent passes should be placed to build each leg to the specified dimension. Sequence planning matters — adding too much on one side early makes it harder to tie in the other side cleanly.
Gauging the result. Fillet weld gauges are used to check leg sizes during and after welding. For unequal legs, you need to measure each leg independently against its specified dimension. A standard equal-leg gauge won’t confirm whether both legs are correct if they differ — use an adjustable fillet weld gauge that can measure each side separately.
Common Mistakes When Welding or Interpreting Unequal-Leg Fillets
Assuming the largest dimension applies to both legs. Some welders see “1/2 x 3/8” and weld both legs at 1/2 inch. This adds unnecessary weld metal, increases heat input, and may violate the maximum leg size limit on the thinner member.
Ignoring which leg goes where. Depositing the larger leg on the wrong member reverses the intended load path. Always confirm orientation with the joint detail before welding.
Using an equal-leg gauge to check both sides. An equal-leg gauge rests flat against a 45-degree face. On an unequal-leg fillet, the face angle is different, so the gauge won’t seat correctly. Measure each leg independently with a straight-edge gauge or an adjustable fillet gauge.
Not accounting for the reduced throat. In practice, a 1/2 x 3/8 fillet does not have the same effective throat as a 1/2 x 1/2 fillet. Substituting one for the other without recalculating throat and strength is an error that can compromise a connection.
When You Need to Verify the Specification
If you’re working from a drawing that calls for an unequal-leg fillet and you’re not sure why, do not substitute a standard equal-leg fillet without authorization. The engineer who specified those dimensions had a reason — material limits, load requirements, or both.
For structural, load-bearing, or code-governed work, follow the welding procedure specification (WPS) and confirm any interpretation questions with the engineer of record or qualified inspector before welding. Visual inspection of the completed weld should confirm leg sizes on both sides using proper gauges, not estimation. A weld that looks full does not necessarily meet the specified leg dimensions.
FAQ
What does “3/8 x 1/4” mean on a fillet weld symbol?
It means the fillet weld has unequal legs: one leg measures 3/8 inch along one member and the other leg measures 1/4 inch along the mating member. The two numbers are separated by a multiplication sign and placed to the left of the triangular fillet symbol on the reference line. The arrow indicates which member receives the first-listed leg size when the drawing specifies that relationship.
Is an unequal-leg fillet weld weaker than a standard fillet weld?
Not necessarily weaker by design — it depends on the required throat and load direction. An unequal-leg fillet does have a smaller effective throat than an equal-leg fillet using the larger of the two dimensions. The effective throat is calculated using both leg values, not just the larger one. When sized correctly by an engineer, the unequal-leg fillet meets the strength requirement for its specific application.
How do I measure the legs of an unequal fillet weld after welding?
Use an adjustable fillet weld gauge and measure each leg separately. Place the gauge against each member face in turn and compare the reading to the specified dimension. A standard equal-leg gauge is not suitable for this check because it assumes a 45-degree face angle, which an unequal-leg fillet does not have. Both legs must independently meet the drawing requirements.
Can I substitute an equal-leg fillet if the unequal-leg size is hard to weld?
Not without engineering authorization. Changing fillet weld geometry affects throat size, load distribution, and potentially the maximum leg size permitted on the thinner member. On structural or code-governed work, substituting weld geometry requires a formal change approval. If the unequal-leg profile is genuinely difficult to achieve with the available equipment or joint access, raise it with the engineer or project supervisor before proceeding.
Which leg goes on which member when the symbol shows two different sizes?
The arrow on the welding symbol points to the member that receives the first-listed leg size in many drawing conventions. However, practice varies, and some drawings include a detail or note clarifying orientation explicitly. Always cross-reference the symbol with the joint detail drawing and fabrication notes. When in doubt, confirm with the drawing originator or engineer before welding.
Does the same symbol convention apply in both AWS and ISO standards?
AWS and ISO handle unequal-leg fillet weld notation somewhat differently. AWS uses the “Z1 x Z2” format placed to the left of the fillet symbol. ISO standards use a different symbol layout and may express leg sizes differently depending on the standard revision. If you’re working from an internationally sourced drawing, confirm which standard it follows before interpreting leg-size callouts. Reading standard welding symbols on real fabrication drawings requires knowing which system the drawing uses.
Can unequal-leg fillet welds be inspected visually?
Visual inspection can confirm approximate leg lengths using gauges, check for obvious defects like undercut, overlap, or incomplete fill, and verify that the weld is on the correct members. However, visual inspection alone cannot confirm internal fusion quality, root penetration, or full compliance with a weld procedure specification. For structural and code-regulated joints, visual checks should follow the applicable acceptance criteria, and additional NDE may be required depending on the standard.
The most important thing to carry away from an unequal-leg fillet weld symbol is that the two numbers are not interchangeable and they do not both apply to the same member. Confirm which leg goes on which surface before you strike an arc, use the correct throat formula when strength matters, and gauge each leg independently after welding. Getting the geometry right the first time is far simpler than correcting a misread symbol after the joint is already deposited.
