Can You MIG Weld Cast Iron?

Cast iron shows up in all kinds of repair situations — cracked engine blocks, broken manifolds, old machinery housings, antique cookware. The question of whether you can reach for your MIG welder is a fair one, especially when TIG and stick rigs aren’t always on hand. MIG welding cast iron is technically possible but generally not the recommended approach. Cast iron’s high carbon content (typically 2–4%) makes it extremely brittle and prone to cracking when exposed to rapid heating and cooling. MIG welding generates intense, localized heat, which almost always causes thermal stress fractures unless the part is preheated, welded slowly, and cooled at a controlled rate. For most cast iron repairs, stick welding with nickel electrodes or brazing produces more reliable results.

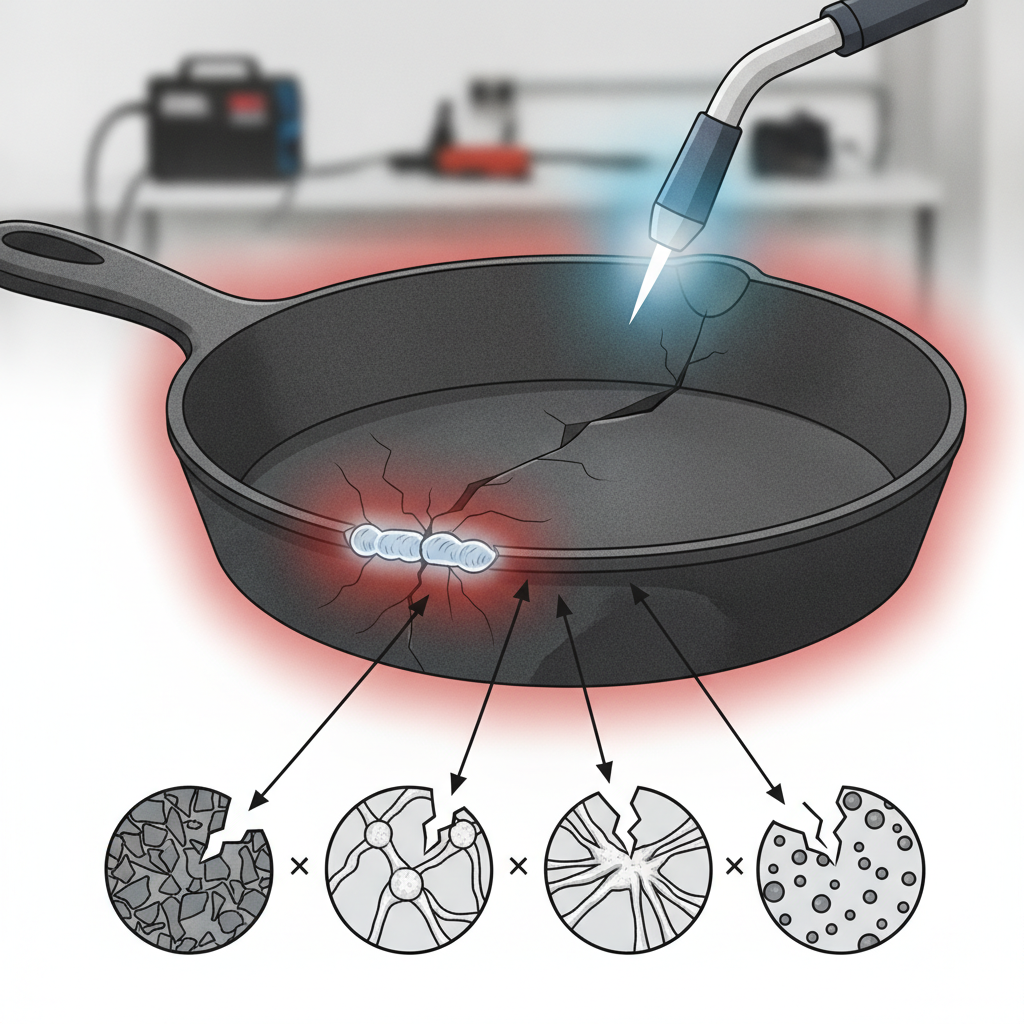

Why Cast Iron Is So Difficult to Weld

Cast iron isn’t like mild steel. The carbon content is dramatically higher, and that carbon wants to migrate into the weld zone during the heat cycle. When it does, it creates a hard, brittle area called the heat-affected zone (HAZ) that cracks easily — sometimes immediately, sometimes hours or days later as residual stresses build. The other problem is thermal shock. Cast iron expands and contracts at a different rate than most weld filler metals, and it doesn’t flex to absorb that difference. It snaps instead. These two issues — carbon migration and thermal shock — are what make MIG welding particularly risky on cast iron. The fast travel speeds and concentrated arc of MIG welding don’t leave much room for controlled heat input.

When MIG Welding Cast Iron Can Work

There are situations where MIG welding cast iron produces acceptable results, particularly for non-critical repairs where appearance matters more than structural integrity. It works reasonably well when: – The part won’t be under significant mechanical stress – You’re filling a cosmetic void or surface crack – The casting is thick enough to absorb heat without warping – You have time to preheat properly and control the cooling rate In practice, experienced fabricators sometimes use MIG on cast iron for things like filling worn mounting holes or repairing cracked decorative ironwork. But they’re not doing it casually — they’re managing heat very carefully.

The Preheat Requirement

Preheating is non-negotiable when attempting to MIG weld cast iron. Skipping this step is the single most common reason cast iron welds crack. The general preheat range for cast iron is 250°F to 700°F (120°C to 370°C), depending on the casting’s size, thickness, and carbon content. Larger, thicker pieces need higher preheat temperatures to ensure the heat is distributed evenly through the material before the arc touches it.

Use an oven-style setup, a propane torch, or a rosebud tip on an oxy-acetylene setup to bring the temperature up slowly. Check the surface temperature with a contact pyrometer or infrared thermometer before welding. After welding, don’t let the part air cool. Wrap it in a welding blanket, bury it in dry sand, or place it in a warm oven and let it cool over several hours. Rapid cooling is what causes the cracking most people attribute to bad welds.

Filler Wire Selection for MIG Welding Cast Iron

Standard ER70S-6 wire — the most common MIG wire for mild steel — isn’t ideal for cast iron. The resulting weld metal is too hard and incompatible with cast iron’s properties. Better options include: – Nickel-based MIG wire – Produces a ductile weld that can flex slightly to handle thermal expansion mismatches. This is the closest you can get to the right choice for MIG on cast iron, though availability is limited. – Silicon bronze MIG wire (ERCuSi-A) – A popular alternative for cast iron repairs. It runs at lower temperatures than steel wire, reduces heat input significantly, and bonds well to cast iron surfaces. The weld isn’t as strong as a steel weld, but it’s far less likely to crack. – ER70S-6 – Usable in a pinch on non-structural repairs, but the HAZ will be hard and brittle. Cracking risk is high. Silicon bronze is worth knowing about. It’s not a true fusion weld — it’s closer to braze welding — but it’s often the most practical MIG-compatible option for cast iron in a shop setting.

Step-by-Step: MIG Welding Cast Iron (With Silicon Bronze)

If you’re going ahead with MIG on cast iron, silicon bronze wire gives you the best odds of a sound repair. 1. Clean the base metal thoroughly. Cast iron is often oily, especially old engine parts. Degrease the area completely and grind off any rust, paint, or scale. Contaminated welds on cast iron crack reliably. 2. Preheat the casting. Bring the entire part — not just the weld area — up to at least 300°F (150°C). Slow, even heating matters more than reaching a specific number. Feel the heat distribution across the whole piece. 3. Set your MIG welder to lower heat. Silicon bronze flows at lower temperatures than steel wire. Start with wire feed and voltage settings on the lower end of your machine’s range for the wire diameter you’re using. Make a test bead on scrap if possible.

4. Use short weld passes. Don’t try to complete the weld in one run. Lay a short bead — about 1 inch — then stop, let it cool slightly, and check for any cracking sound or visible stress. Peening the bead lightly with a hammer while it’s still warm helps relieve stress. 5. Maintain interpass temperature. Don’t let the casting drop below your preheat temperature between passes. Touch the surface regularly with your thermometer. 6. Slow cool the finished weld. Wrap, bury, or oven-cool the part immediately after welding. This is where most DIY repairs fail — the weld looks fine, then cracks appear the next morning.

MIG vs. Other Methods for Cast Iron

Understanding the trade-offs makes it easier to decide whether MIG is actually the right tool for your situation.

Method	Cracking Risk	Skill Required	Practicality	Best For
MIG (Silicon Bronze)	Moderate	Intermediate	High	Non-structural repairs, cosmetic fills
MIG (ER70S-6)	High	Intermediate	High	Not recommended for cast iron
Stick (ENi-CI nickel rod)	Low	Intermediate	High	Structural repairs, cracks
TIG (Nickel filler)	Low	High	Lower	Precision repairs
Brazing / Braze welding	Low	Moderate	Moderate	Decorative iron, non-load bearing
Cold stitching (no heat)	Very low	Moderate	Situational	Cracked blocks, irreplaceable castings

For critical structural repairs — cracked engine blocks, load-bearing machine frames — stick welding with ENi-CI nickel electrodes remains the most reliable field method. Flux core welding on cast iron is another option some welders explore, though it carries similar heat-management challenges to MIG.

Common Mistakes That Cause Cast Iron Welds to Fail

Most failed cast iron welds come down to the same predictable errors: – Skipping preheat – The most common cause of immediate cracking – Welding too fast – High travel speed creates thermal shock at the HAZ edges – Using the wrong filler – Hard steel wire on cast iron almost always results in a brittle joint – Letting it air cool – Even a good weld can crack if the casting drops temperature too quickly – Not cleaning the base metal – Oil and carbon contamination create porosity and weak fusion – Ignoring cracking sounds during welding – A ticking or pinging sound after laying a bead often means cracking is already happening If you hear any cracking or pinging from the casting while it cools, slow down the cooling process immediately. More heat, slower cooling. You may be able to salvage the repair if you catch it early.

FAQ

Is MIG welding cast iron as strong as stick welding? No. Stick welding with nickel-based electrodes like ENi-CI produces a more compatible, ductile weld deposit that handles cast iron’s thermal behavior better than most MIG wire. MIG welds on cast iron tend to have higher residual stress and a harder HAZ, which means lower strength in practice, especially under dynamic or impact loads.

What MIG wire works best on cast iron? Silicon bronze wire (ERCuSi-A) is the most practical MIG option for cast iron. It runs at lower temperatures, reduces heat input, and produces a more ductile deposit than steel wire. Nickel-based MIG wire is technically better but harder to find. ER70S-6 is not recommended for structural cast iron welds. Do you need shielding gas to MIG weld cast iron? Yes. You still need shielding gas when MIG welding cast iron, typically 100% argon or a 75/25 argon/CO2 mix depending on your wire choice. Silicon bronze generally runs better with 100% argon. Proper shielding gas selection for MIG welding helps prevent porosity and contamination in the weld zone. Can you MIG weld a cracked cast iron engine block? Technically yes, but it’s not advisable without significant experience managing heat on cast iron. Engine blocks often have complex geometries that make even preheat difficult, and a failed weld in this application can cause coolant leaks or structural failure. Cold metal stitching is often a safer option for cracked blocks, especially if the crack is long or the block has sentimental or rare value. Why does cast iron crack after welding even when it looks fine? Delayed cracking is common with cast iron. The weld may look clean immediately after, but residual thermal stresses continue to redistribute as the metal cools. If the cooling rate is too fast, these stresses exceed the material’s low tensile strength and crack appears — sometimes minutes later, sometimes the next day. Slow, controlled post-weld cooling is the primary defense against this. Can you MIG weld cast iron without preheating it? For very small cosmetic repairs on thick sections, some welders attempt it without preheat using silicon bronze wire and short tack passes. The risk is substantially higher, and cracking is more likely. Any repair that matters structurally should always include proper preheat. Skipping it is a shortcut that frequently fails. What’s the best way to tell if a casting is cracked after welding? A dye penetrant (PT) test is the most practical shop method — apply the penetrant, let it dwell, clean the surface, then apply developer. Cracks that aren’t visible to the naked eye will show up clearly. A simple tap test (listening to the resonance when you strike the casting lightly with a hammer) can also give an indication — a dull thud instead of a ringing sound often means cracking is present.

MIG welding cast iron is possible, but it asks more of the welder than most other materials. Controlled heat input, proper filler selection, and a disciplined cool-down process are what separate successful repairs from cracked ones. If the repair is structural or the part is irreplaceable, weigh your options carefully before reaching for the MIG torch.
