You’ve grabbed a contact tip from your parts drawer, threaded it in, and it fits — but something feels off. The wire keeps catching, the arc sputters, or the tip burns back faster than usual. This happens more often than it should, and it usually comes down to one overlooked question.
MIG welding contact tips are not universally interchangeable. While many tips share similar thread sizes and physical dimensions, compatibility depends on the wire diameter, tip material, thread pitch, and the specific MIG gun or torch they’re designed for. Using the wrong tip can cause poor wire feeding, erratic arc performance, and premature tip failure.

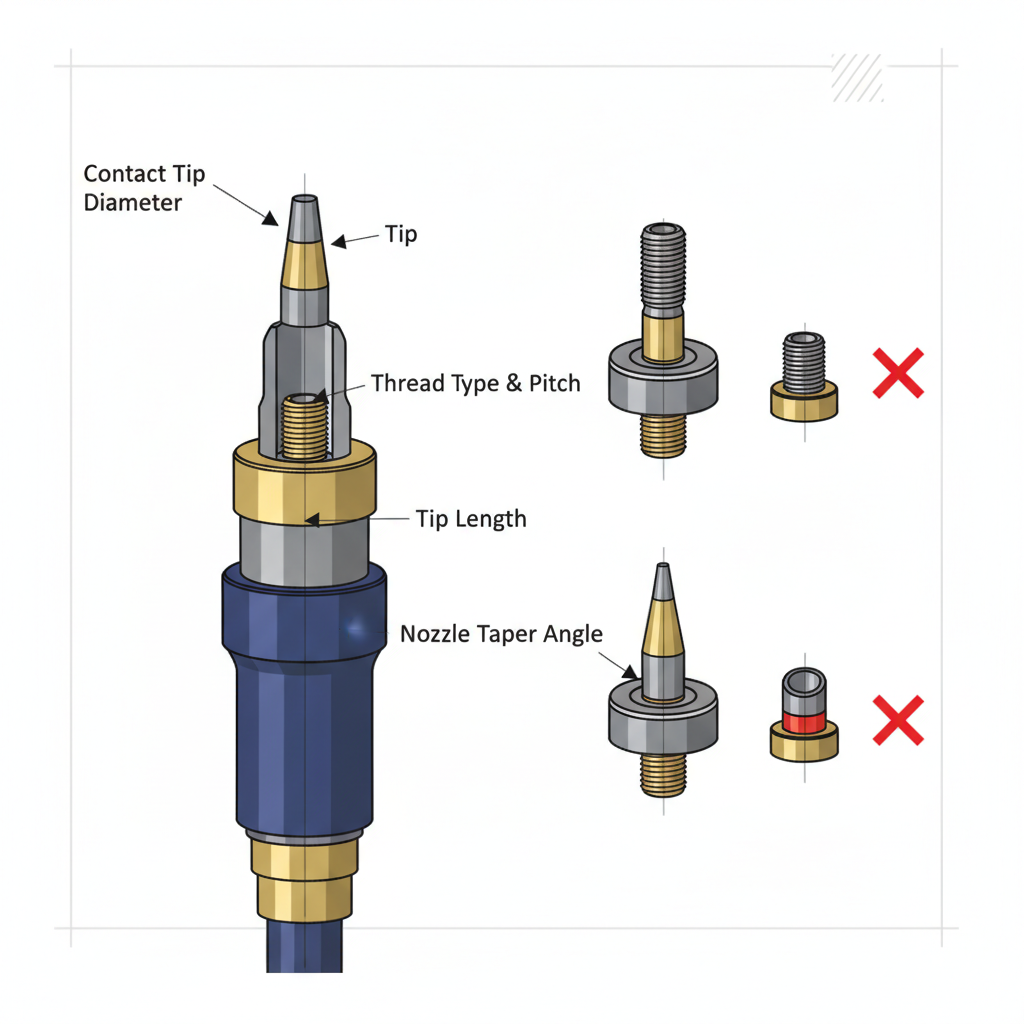

What Makes a Contact Tip Compatible (or Not)
Contact tips look simple — a small copper cylinder with a hole through the middle and threads on the outside. But several variables determine whether a tip will actually work correctly in your setup.
Wire diameter bore size is the most critical factor. Each tip is bored to match a specific wire diameter, typically ranging from 0.023″ to 0.045″ for common MIG applications. The bore should be slightly larger than the wire to allow smooth feeding while still maintaining good electrical contact.
A tip bored for 0.035″ wire used with 0.030″ wire will produce an inconsistent arc. The wire won’t make reliable contact with the tip wall, causing voltage fluctuations and spatter.
Thread size and pitch vary between torch manufacturers. Most standard tips use a threaded shank that screws into the contact tip holder (also called the gas diffuser). Common thread sizes include M6 and M8, but pitch and length differ across brands.
Tip length and body diameter also vary by torch series. A tip may thread in and seem secure but sit at the wrong depth inside the nozzle, affecting gas coverage and arc stability.

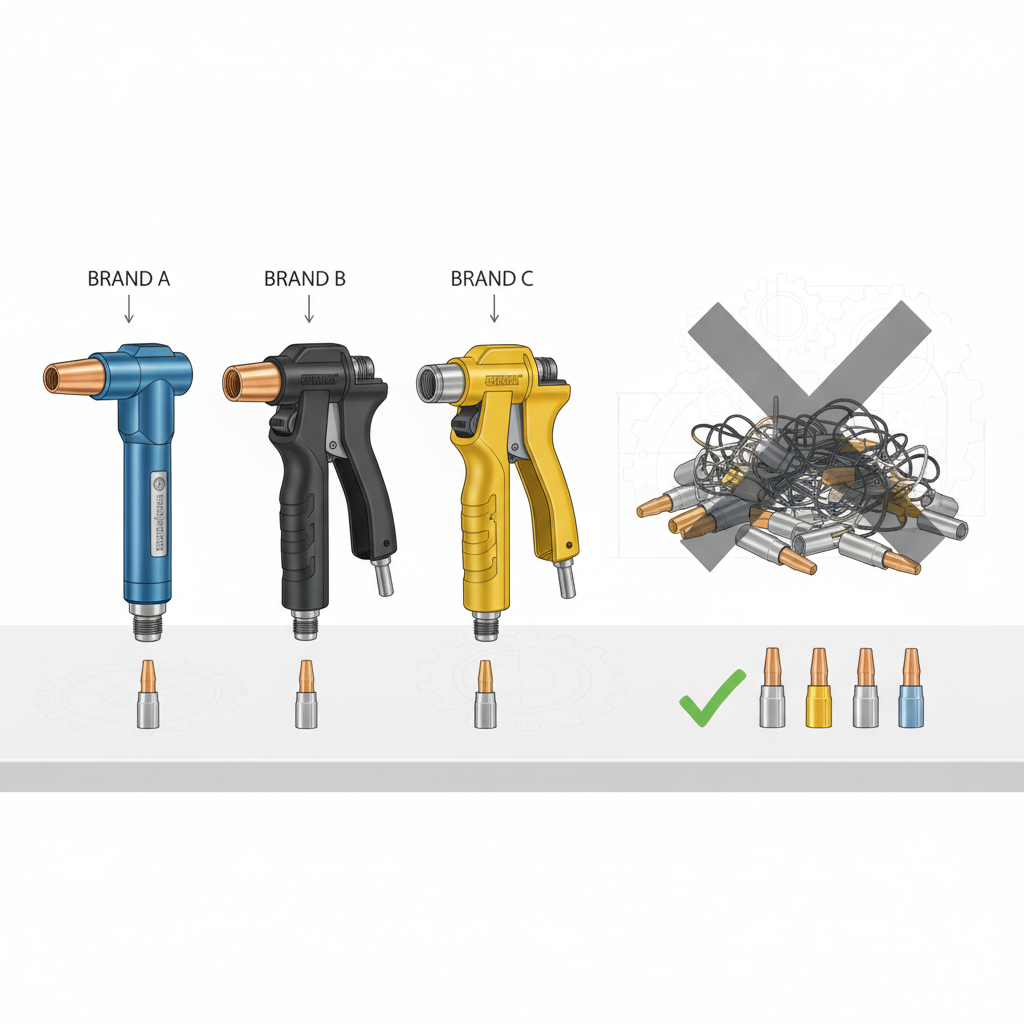

How Tip Compatibility Varies by MIG Gun Brand
MIG gun manufacturers design contact tips and gas diffusers as matched components. Mixing brands is sometimes possible, but it requires verification rather than assumption.
| Torch/Gun Series | Common Tip Thread | Standard Bore Sizes | Notes |
|---|---|---|---|
| Lincoln Electric Magnum 100L | M6 x 1.0 | .023″ – .035″ | Widely available; some aftermarket options fit |
| Hobart Handler series | M6 x 1.0 | .023″ – .035″ | Uses standard M6 thread; moderate cross-compatibility |
| Miller MIG guns (M-10, M-15) | M6 x 1.0 | .023″ – .045″ | Miller-specific tip geometry recommended |
| Bernard BTB/T-Gun | 5/8″–18 threaded shank | .023″ – .1/16″ | Uses different thread standard; limited cross-compat |
| Lincoln Magnum 250 | M8 x 1.25 | .035″ – .045″ | Larger thread for higher-amperage guns |
In practice, many aftermarket contact tip manufacturers produce tips labeled as compatible with specific torch models. Brands like Tweco and Lincoln often share thread geometry on certain gun models, so cross-compatibility does exist — but only when manufacturers explicitly confirm it.
Standard vs. Non-Standard Tips: What You’ll Actually Encounter
Most entry-level and mid-range MIG welders — such as the Hobart Handler 140 or Lincoln Electric Weld-Pak 140 HD — use a commonly available M6 thread size. This makes sourcing replacement tips straightforward, and some aftermarket tips will cross-fit between these machines.
Higher-amperage guns and semi-automatic torches (250A and above) often use M8 or larger proprietary threads. At that level, using off-spec tips becomes a more serious problem because higher current demands tighter tolerances between the wire and the tip bore.
Heavy industrial applications may use water-cooled torches with entirely different tip geometries that have no overlap with standard air-cooled consumable sets.
Tip Material and Why It Matters Beyond Fit
Even when a contact tip physically fits, the material composition affects performance and longevity.
Standard electrolytic copper tips are the baseline for most MIG applications. They offer good conductivity and work well with solid wire on mild steel.
Chrome zirconia copper (CuCrZr) tips run hotter without deforming as quickly, making them better suited for high-duty-cycle applications or aluminum welding where tips tend to gall and fail faster.
Silver-coated or heavy-duty tips reduce spatter adhesion and last longer in production environments.
Swapping a standard copper tip into a setup that runs aluminum wire — even if it physically fits — will accelerate wear significantly. The softer aluminum wire shaves the bore, causing the hole to enlarge and lose consistent electrical contact.
Common Problems Caused by Using the Wrong Tip
Most wire feeding and arc quality problems trace back to tip compatibility issues. Here’s what to watch for:
- Birdnesting — wire tangles inside the gun liner, often caused by a tip bore too tight for the wire diameter
- Burnback — wire fuses to the tip, usually from a bore too large creating inconsistent contact
- Excessive spatter — often a sign of irregular current transfer from a mismatched bore size
- Inconsistent arc — stuttering or popping arc that doesn’t respond to wire speed adjustments
- Short tip life — tips wearing unusually fast, often caused by wrong material for the wire type or process
A common issue technicians encounter is a tip that threads in fine but doesn’t seat flush with the diffuser. This creates a gap where spatter can accumulate and eventually seize the tip in place.
How to Identify the Right Replacement Tip
When sourcing replacement tips, confirm these three details before purchasing:
- Wire diameter — match the tip bore exactly to the wire you’re running (e.g., .030″, .035″)
- Thread specification — check your gun’s documentation or measure the existing tip (M6 x 1.0 is common for light-duty guns; M8 x 1.25 is typical for heavier guns)
- Torch/gun model — most consumable manufacturers publish compatibility charts; use them
If you’re unsure, pull an old tip and compare it physically against a replacement before committing to a bulk purchase. This matters especially when buying multi-packs of aftermarket tips.
FAQ
Can I use Lincoln contact tips in a Hobart MIG gun?
In some cases, yes — both brands use M6 x 1.0 threaded tips on their lighter-duty guns. However, tip body length and bore tolerance can differ slightly between models. If the tip threads in securely, seats flush against the diffuser, and uses the correct bore size for your wire, it will generally work. When in doubt, use OEM tips from the gun manufacturer.
What happens if I use a contact tip with the wrong bore size?
A bore too large allows the wire to wander inside the tip, creating inconsistent electrical contact, irregular arc voltage, and excessive spatter. A bore too tight causes the wire to drag, leading to birdnesting in the drive system and tip burnback. Always match bore size to wire diameter precisely.
Are aftermarket MIG tips as good as OEM tips?
Quality aftermarket tips from reputable brands can perform comparably to OEM tips, especially for standard applications. Lower-grade aftermarket tips may have looser bore tolerances or inferior copper purity, leading to faster wear. For production welding or aluminum applications, OEM or certified aftermarket tips are generally worth using.
Do flux-core welding tips differ from solid wire tips?
The contact tips themselves are physically similar, but flux-core wire is softer than solid wire and wears tip bores faster. Some manufacturers offer tips with slightly different tolerances optimized for flux-core use. More importantly, flux-core setups often use a recessed tip position inside the nozzle, which differs from the flush or extended position used with solid wire and gas shielding.
How often should contact tips be replaced?
There’s no fixed interval — it depends on the process, wire type, duty cycle, and tip material. A tip should be replaced when the bore becomes visibly oval or worn, when spatter buildup causes feeding drag, or when arc quality degrades and no other settings explain it. In production environments, tips may need replacement every few hours of welding.
Can I use the same tip for different wire types (steel, aluminum, stainless)?
The bore size determines fit, not the wire material. However, aluminum and flux-core wire wear tips faster than solid mild steel wire. A tip that has seen aluminum use should not be reused for precision stainless or aluminum work once it shows wear, even if it still physically passes wire.
What’s the difference between standard and tapered contact tips?
Standard contact tips have a cylindrical tip geometry and thread into the diffuser. Tapered tips have a narrower nose profile and are used in applications requiring better access to tight joints or better arc visibility. They function the same way but are not interchangeable with standard-geometry tips even when the thread matches.
MIG contact tips are small but precision components. The thread fit only gets you to first base — the bore size, material, and seating geometry all need to match your wire and torch system. Using the right tip is one of the lowest-cost, highest-impact ways to keep your welds consistent and your consumables lasting as long as they should.
