Getting your shielding gas flow rate wrong is one of the most common — and most overlooked — causes of poor MIG welds. Too little gas and you get porosity. Too much and you waste gas while actually disturbing the weld pool with turbulence.
For most MIG welding applications, a flow rate between 10 and 20 litres per minute (L/min) is appropriate. Light work on thin material typically needs 10–12 L/min, while heavier welding on thicker steel may require up to 15–20 L/min. Outdoor welding or larger nozzles may push requirements toward the higher end of that range.
Why Flow Rate Matters More Than Most Beginners Realise
Shielding gas has one job: keep atmospheric oxygen and nitrogen away from the molten weld pool. If the gas coverage is weak, the weld oxidises, producing porosity, spatter, and a rough, discoloured bead.
What’s less obvious is that going too high creates its own problems. Excessive flow causes turbulence at the nozzle, which actually draws in ambient air rather than excluding it. You end up with the same contamination issues as if you had no gas at all — just while burning through your cylinder twice as fast.
Getting the flow rate dialled in correctly is a simple adjustment that makes a measurable difference in weld quality.

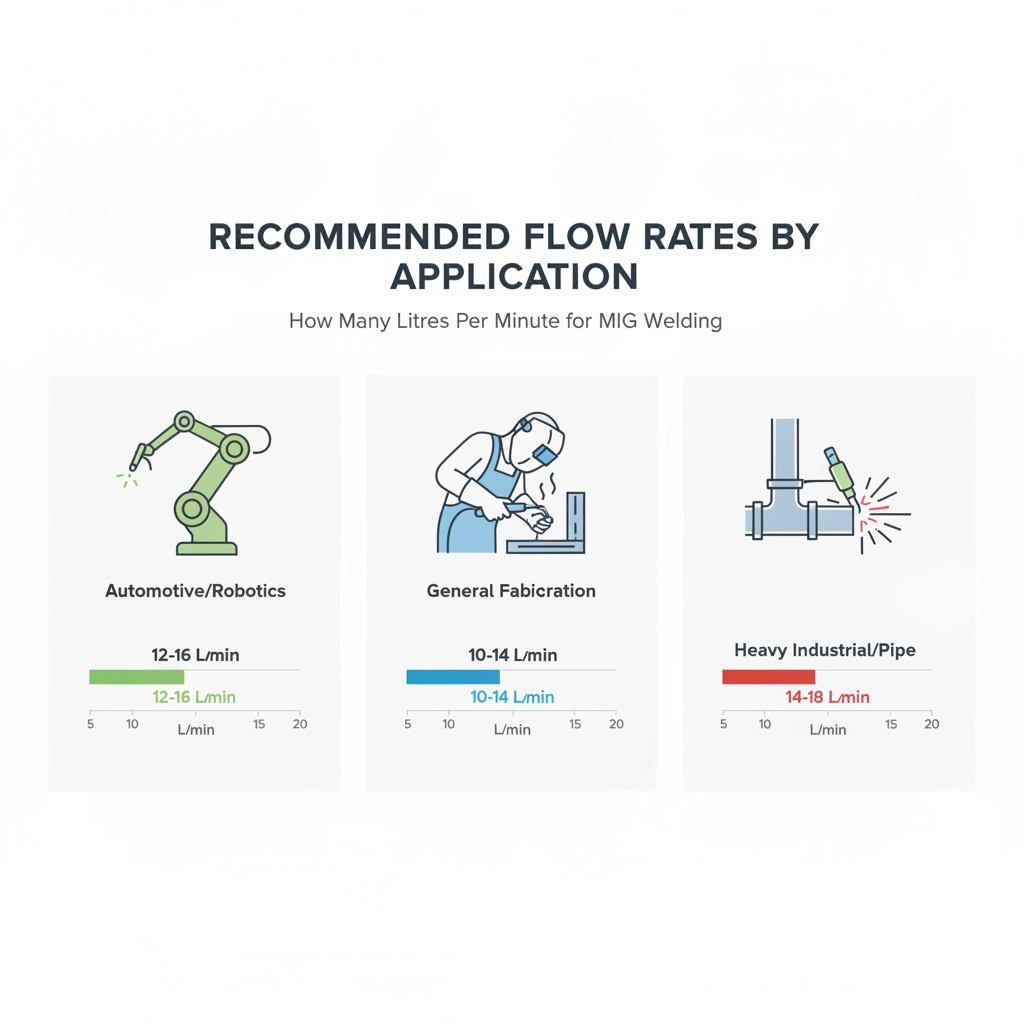

Recommended Flow Rates by Application
Different welding situations call for different flow rates. Here’s a practical reference to help you set your regulator correctly.
| Application | Material Thickness | Recommended Flow Rate |
|---|---|---|
| Light sheet metal (indoor) | 0.6 – 1.5 mm | 8 – 12 L/min |
| General fabrication (indoor) | 1.5 – 6 mm | 12 – 15 L/min |
| Heavy plate welding (indoor) | 6 mm+ | 15 – 20 L/min |
| Outdoor welding (light wind) | Any | 15 – 20 L/min |
| Outdoor welding (moderate wind) | Any | 20 – 25 L/min |
| Aluminium MIG (spray arc) | Any | 15 – 20 L/min |
These ranges assume a standard 10–15 mm nozzle-to-workpiece contact tip distance. Longer stick-out or a wider nozzle bore will generally require slightly more gas to maintain adequate coverage.
Factors That Change the Ideal Flow Rate
The table above is a solid starting point, but your specific setup may shift these numbers. Several variables affect how much gas you actually need.
Nozzle diameter and condition
A larger nozzle bore needs a higher flow to create an effective gas curtain. Spatter-clogged nozzles also disrupt the gas pattern significantly, which is why keeping nozzles clean directly affects your ability to maintain consistent shielding.
Contact tip to work distance (CTWD)
As you increase stick-out, the gas column has further to travel before reaching the weld pool. Even a few extra millimetres can reduce shielding effectiveness and push you toward the upper end of the recommended range.
Welding position
Flat and horizontal welding positions naturally retain gas coverage better than vertical or overhead. Overhead welding in particular benefits from a slight increase in flow because the gas disperses more quickly due to convection.
Ambient conditions
Wind is the biggest external factor. Even a light draft from a shop door or fan can blow your shielding gas away entirely. In those situations, either increase flow rate, reposition the work, or use a wind screen. For persistent outdoor use, the Lincoln Electric Magnum PRO Curve 300 gun’s flexible neck design helps maintain consistent nozzle angle in awkward positions, which indirectly supports better gas coverage.
Wire feed speed and amperage
Higher amperage produces a more energetic arc and a larger, more turbulent weld pool. At higher power settings, a modest increase in flow rate helps maintain adequate coverage over that larger arc zone.

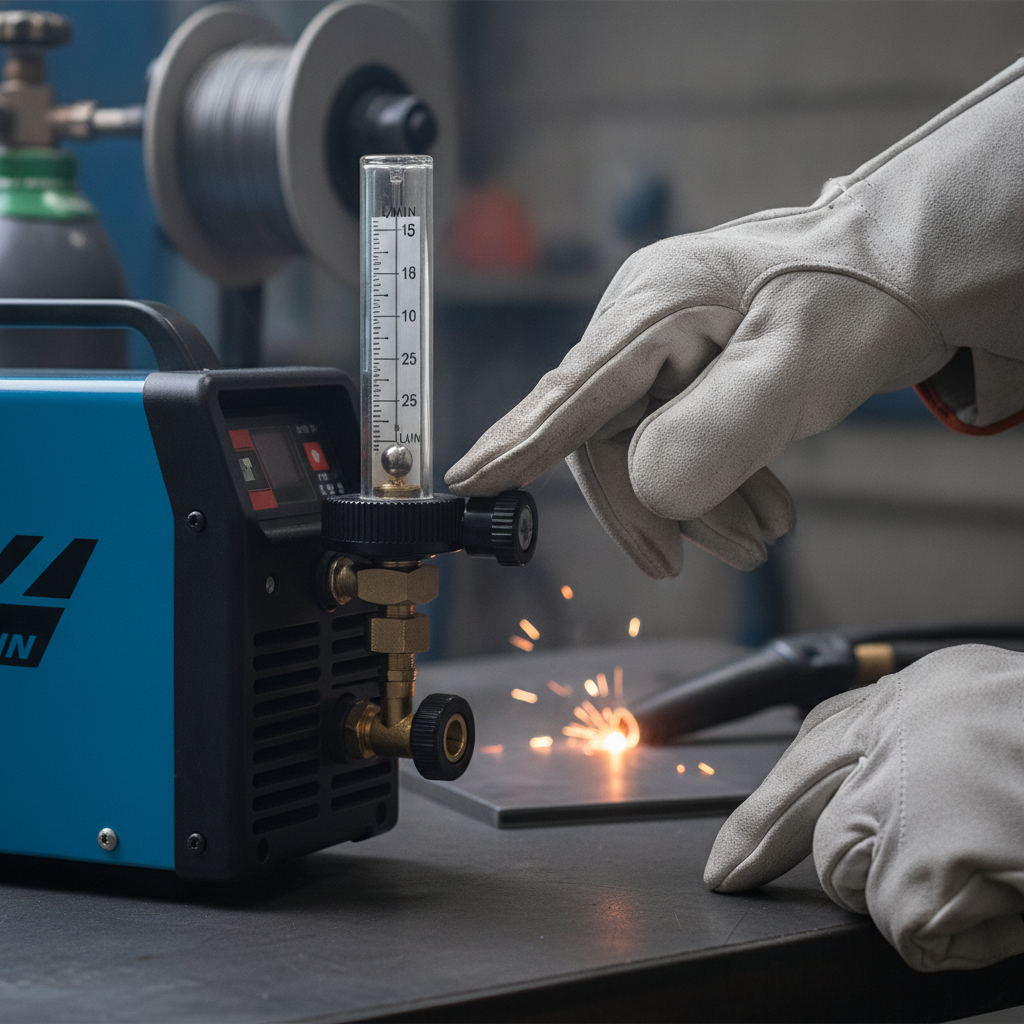

How to Set Your Flow Rate Correctly
Setting up your gas flow takes about 60 seconds and makes a real difference to consistency.
- Connect your regulator to the cylinder and ensure the hose connections are secure with no leaks.
- Open the cylinder valve slowly until the high-pressure gauge stabilises.
- Trigger the gun without striking an arc — most MIG welders will purge gas when you pull the trigger without the machine in welding mode, or simply momentarily trigger while the machine is on.
- Adjust the flow regulator while gas is flowing, not while it’s static. Static readings can be inaccurate.
- Set the flow to your target range based on the application table above.
- Confirm by welding a test bead and inspecting for porosity, spatter, or discolouration — signs that shielding may be inadequate.
Always set the flow while gas is actually moving through the system. Setting it at zero flow gives a slightly false reading due to back-pressure.
Signs Your Flow Rate Is Wrong
Catching a flow rate problem early saves wasted material and rework time.
- Signs of too little gas:
- Porous weld beads with small pinholes visible on the surface or in cross-section
- Excessive spatter
- Weld bead appears grey, dull, or heavily oxidised
- Rough, inconsistent bead profile
- Signs of too much gas:
- Porosity despite high flow (turbulence-induced contamination is often confused with low-flow porosity)
- Excessive gas consumption with no improvement in weld quality
- Hissing or audible turbulence at the nozzle
In practice, turbulence-induced porosity is one of the more common misdiagnoses. Welders increase flow trying to fix porous welds, which makes the problem worse. If your welds are porous and your flow is already above 20 L/min indoors, the answer is usually to reduce flow, not increase it.
Gas Type and Its Relationship to Flow Rate
The gas mix you’re using doesn’t dramatically change the optimal flow rate range, but it does affect how efficiently the gas shields the arc.
- 100% CO2 is denser than air and provides reasonable coverage, though it produces more spatter. Flow rates of 10–15 L/min are typically sufficient for indoor use.
- C25 (75% Argon / 25% CO2) is the most common mix for mild steel MIG welding. It provides cleaner welds, less spatter, and consistent results across the 10–18 L/min range.
- Pure Argon is used for aluminium MIG welding. Argon is slightly lighter than CO2 mixes and may benefit from a modestly higher flow rate, typically 15–20 L/min, to ensure consistent coverage.
The Lincoln Electric Weld-Pak 180HD is a popular example of a welder commonly used with C25 gas across general fabrication work — the regulator that ships with most setups in that category is calibrated in both L/min and CFH, so confirm which scale you’re reading.
Litres Per Minute vs CFH — Knowing Which Scale You’re Reading
Many regulators, particularly older or American-made ones, display flow in cubic feet per hour (CFH) rather than litres per minute. Misreading the scale is surprisingly common and leads to either severely under-gassed or over-gassed setups.
Conversion: 1 L/min ≈ 2.12 CFH
| Litres Per Minute | Cubic Feet Per Hour |
|---|---|
| 8 L/min | ~17 CFH |
| 10 L/min | ~21 CFH |
| 15 L/min | ~32 CFH |
| 20 L/min | ~42 CFH |
| 25 L/min | ~53 CFH |
Most North American welding guides quote CFH, while Australian, European, and UK guides use L/min. Before setting your regulator, confirm which unit your gauge is displaying.
FAQ
What happens if I MIG weld without shielding gas?
Without shielding gas, the weld pool is fully exposed to oxygen and nitrogen in the atmosphere. The result is a heavily porous, brittle weld with significant oxidation and spatter. For structural or load-bearing work, a weld made without adequate gas coverage is likely to fail. Gasless flux-core wire is a separate process that uses internal flux to generate shielding — it’s not the same as MIG welding without gas.
Is 10 litres per minute enough for MIG welding mild steel indoors?
Yes, for thin sheet metal and light fabrication in a draught-free indoor environment, 10 L/min is generally sufficient. Most hobby and light fabrication work on material under 3 mm welds cleanly at 10–12 L/min with C25 gas. If you’re seeing minor porosity at that setting, check your nozzle condition and contact tip distance before increasing flow.
Why does my MIG weld have porosity even with high gas flow?
High flow turbulence is a common and underdiagnosed cause of porosity. When flow rate exceeds around 20 L/min indoors, the gas stream becomes turbulent at the nozzle exit, pulling ambient air into the shielding zone. Try reducing your flow to 12–15 L/min and welding a test bead. Also check for leaks in your hose connections and ensure your nozzle is clean and undamaged.
Does wire diameter affect how much shielding gas I need?
Wire diameter indirectly affects flow requirements. Larger wire diameters are typically used at higher amperages, which create a larger, more energetic arc zone. That larger arc area benefits from a slightly higher flow rate. In practice, the difference is subtle — moving from 0.8 mm to 1.0 mm wire doesn’t require you to dramatically change your gas setting, but if you’re running heavy wire at high amperage, staying toward the upper end of the recommended range makes sense.
Can I MIG weld outdoors without increasing gas flow?
Light outdoor welding in calm, sheltered conditions is possible at standard indoor flow rates, but any wind — even a light breeze — will disperse your shielding gas before it protects the weld pool. Most experienced welders increase outdoor flow to at least 18–22 L/min and try to position the work to block prevailing wind. A portable welding screen or windbreak is worth using if outdoor welding is a regular part of your work.
What flow rate should I use for aluminium MIG welding?
Aluminium MIG welding uses pure argon rather than CO2 mixes. A flow rate of 15–20 L/min is typically recommended. Argon is slightly lighter than mixed gases and disperses a little more readily, so staying toward the middle to upper end of that range gives more consistent coverage. Aluminium welding is also more sensitive to contamination, so cleanliness and consistent gas coverage are more critical than with mild steel.
What is the difference between a single-stage and two-stage regulator for MIG welding gas?
A single-stage regulator reduces cylinder pressure to working pressure in one step, which means the output pressure varies slightly as the cylinder empties. A two-stage regulator does this in two steps, delivering more consistent output pressure throughout the life of the cylinder. For most hobbyist and light fabrication MIG welding, a single-stage regulator is adequate. Two-stage regulators are generally preferred for production environments where consistent, precise flow rates matter throughout long welding sessions.
Getting your flow rate right is one of the simplest settings to check but one of the most impactful for weld quality. Start in the 10–15 L/min range for indoor work, adjust based on your environment and material thickness, and always verify by running a test bead. If something looks wrong with your weld, check gas flow before assuming the problem lies with wire speed or voltage.
