Bumpy, convex MIG welds that sit high off the base metal are one of the most common frustrations for welders at every level. They look unprofessional, create stress concentration points, and often signal a deeper settings problem worth fixing.
Getting MIG welds to lay flat comes down to four main variables: wire feed speed, voltage, travel speed, and gun angle. Too little voltage or too much wire feed speed causes a tall, ropy bead. Increasing voltage, slightly reducing wire speed, maintaining a consistent 10–15° travel angle, and keeping steady travel speed will flatten the bead profile significantly. Shielding gas selection and material prep also play supporting roles.

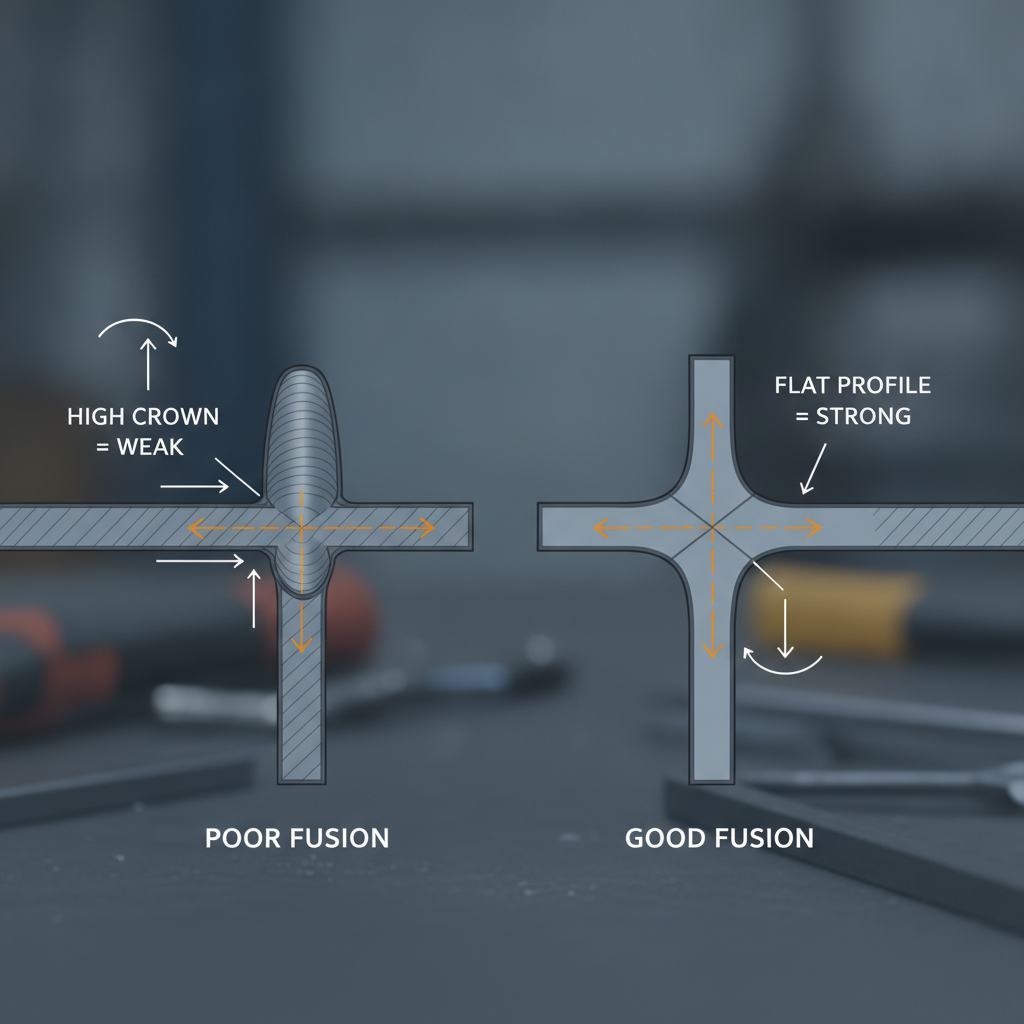

Why Bead Profile Matters Beyond Appearance
A flat, smooth weld bead isn’t just cosmetic. It indicates proper fusion between the weld metal and base material. A high, convex bead often means the wire deposited more metal than the heat could properly melt into the joint — a condition that can leave incomplete fusion at the bead edges even when the top surface looks solid.
In structural or load-bearing applications, this is a real concern. A bead that blends smoothly into the parent metal distributes stress more evenly than one that sits proud and creates a notch effect at the toes.

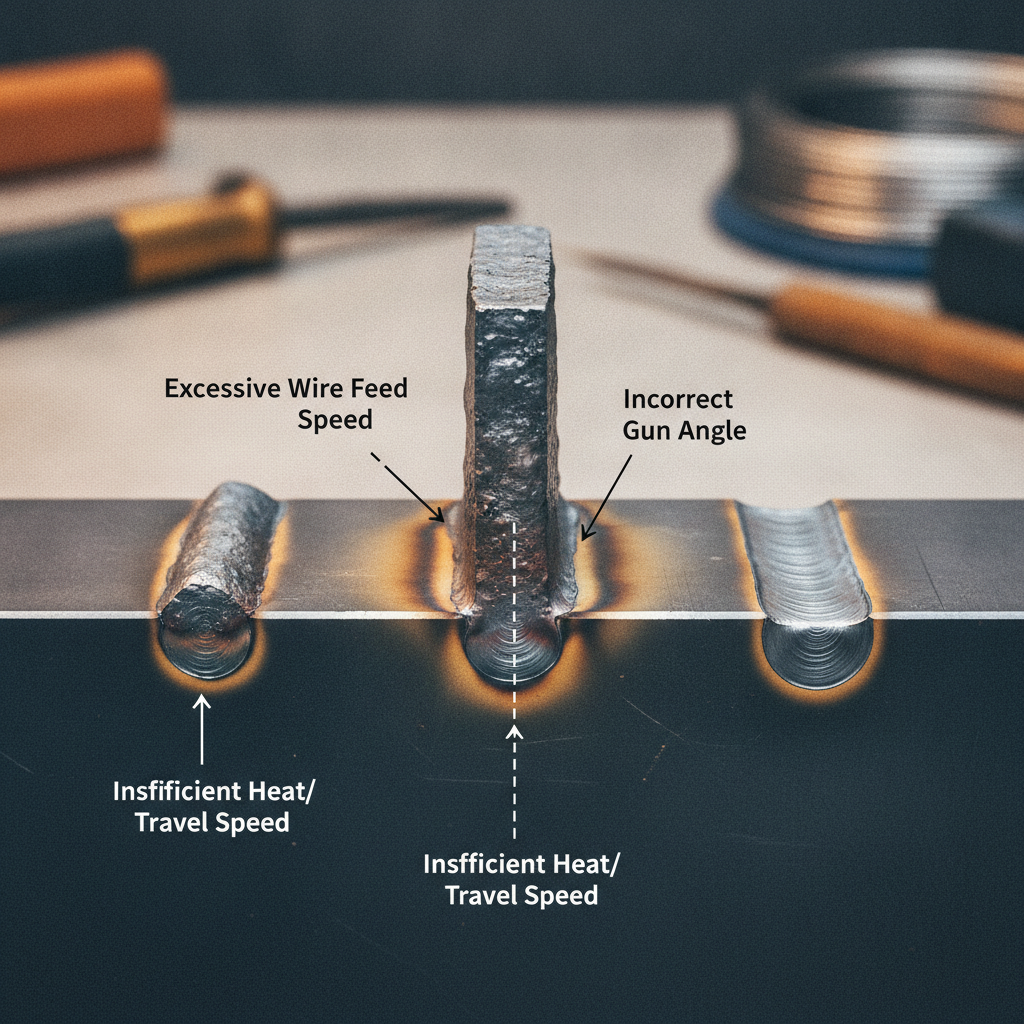

The Root Causes of High, Convex MIG Beads
Before adjusting anything, it helps to understand what’s actually creating the problem.
Voltage too low — This is the most common culprit. Voltage controls arc width and heat input. Insufficient voltage means the arc doesn’t spread properly, so the metal piles up instead of flowing out flat.
Wire feed speed too high — Running too much wire relative to your voltage creates an imbalance. You’re depositing more metal than the heat can handle, which builds height.
Travel speed too fast — Moving the gun quickly deposits less heat per inch of weld, resulting in a narrow, raised bead rather than a wide, flat one.
Travel speed too slow — This can actually cause similar issues in a different way. Excessive heat buildup can create an irregular, uneven profile with undercut at the edges.
Incorrect gun angle — Holding too steep an angle (pointing straight down or nearly vertical) concentrates heat in one spot rather than spreading it.
Wrong shielding gas — Using 100% CO₂ produces a more turbulent arc with a stiffer, more convex bead compared to a 75/25 argon/CO₂ mix, which burns hotter and smoother.
Dirty or contaminated base metal — Mill scale, rust, paint, and oil interfere with arc stability and bead flow.
Adjusting Settings to Flatten Your Bead
This is where most of the improvement happens. Approach it systematically rather than changing everything at once.
Voltage First
Raise your voltage in small increments — typically 0.5 to 1 volt at a time — and run a test bead on scrap. You’ll notice the bead starts to flatten and widen as voltage increases. If you see excessive spatter or the arc becomes erratic, you’ve gone too far.
For most mild steel MIG welding on 1/8″ to 3/16″ material, voltage typically falls in the 18–22V range. Thinner material runs cooler (16–19V), and thicker material requires more heat.
Dial In Wire Feed Speed
Once voltage is dialed, adjust wire feed speed to match. A common starting approach is to use the manufacturer’s recommended settings chart — machines like the Lincoln Electric Easy MIG 180 include a built-in reference guide on the door panel that gives solid baseline settings for common material thicknesses.
If the bead is still tall after raising voltage, try reducing wire feed speed slightly. The goal is balance: enough filler to fill the joint without overwhelming the heat input.
Slow Down Your Travel Speed
Many beginners move too fast, trying to “chase” the puddle rather than controlling it. Try slowing your travel speed until the puddle visibly widens. A wider puddle generally translates to a flatter bead.
A practical check: the bead width should be roughly 2–3 times the wire diameter for most applications. If your bead looks narrow and tall, slow down.
Gun Angle and Technique
Settings alone won’t solve everything if your technique is working against you.
Travel angle — Maintain a 10–15° push angle (gun leaning in the direction of travel) for flat and horizontal welds. This allows the arc to push the puddle slightly, producing a flatter, cleaner bead with better visibility.
Work angle — For flat position welds on a butt joint, keep the gun perpendicular to the work surface. On fillet welds (T-joints), hold the gun at 45° between the two pieces.
Stick out (contact tip to work distance) — Keep electrode extension consistent at roughly 3/8″ to 1/2″ for most short-circuit transfer MIG welding. Longer stick out increases resistance, reduces heat, and can cause a convex bead.
Steady movement — Inconsistent speed creates uneven bead height. If freehand stability is an issue, rest your forearm on the workpiece or a stable surface when possible.
Shielding Gas Makes a Bigger Difference Than Most Expect
If you’re running 100% CO₂ and struggling with flat beads, switching to a 75% Argon / 25% CO₂ mix (commonly called C25) will produce a noticeably different result. The argon-rich blend creates a smoother, wider arc that flows better and lays flatter.
C25 is the standard choice for short-circuit and spray transfer MIG welding on mild steel. It reduces spatter significantly and improves bead appearance in addition to profile.
Pure CO₂ is cheaper and provides deeper penetration, but it comes at the cost of a more turbulent arc and a more convex bead.
Quick Reference: Settings Adjustments and Their Effect on Bead Profile
| Problem | Likely Cause | Adjustment |
|---|---|---|
| Tall, narrow bead | Voltage too low | Increase voltage |
| Tall, ropy bead | Wire speed too high | Reduce wire feed speed |
| Narrow bead, poor fusion | Travel speed too fast | Slow down travel speed |
| Convex bead, rough surface | 100% CO₂ shielding gas | Switch to 75/25 Ar/CO₂ |
| Uneven bead height | Inconsistent travel speed | Improve travel consistency |
| Bead piles in center | Gun angle too steep | Use 10–15° travel angle |
Contaminated Metal Is a Setup Saboteur
Even perfect settings won’t produce flat, smooth beads on dirty material. Mill scale, rust, oil, and paint all disrupt arc stability and cause the bead to wander, spatter, and pile up.
- Before welding:
- Grind or wire-brush mill scale from weld zones
- Wipe with acetone or a degreaser to remove oil and grease
- Remove any coatings (paint, galvanizing) from the weld area and a clean border around it
This step is frequently skipped, especially on scrap or used steel. It makes a measurable difference in bead quality.
FAQ
Why does my MIG weld look like a stack of coins instead of a smooth bead?
A stacked or ropy appearance usually means voltage is too low for the wire speed being used. The arc is short and erratic, depositing metal faster than it can spread. Increase voltage in small steps while keeping wire feed speed constant and test on scrap until the bead begins to smooth out and widen.
What voltage should I use for flat MIG welding on 1/4″ steel?
On 1/4″ mild steel, most machines typically run between 19–23V with short-circuit transfer, depending on wire diameter and joint type. For spray transfer at higher amperages, voltage requirements increase further. Always use the machine’s reference chart as a starting point and fine-tune based on actual bead appearance on test material before welding the real piece.
Does pushing vs. pulling the MIG gun affect bead flatness?
Yes. Pushing (forehand technique) produces a shallower, wider, flatter bead and is preferred for most flat and horizontal MIG welds. Pulling (backhand) creates deeper penetration and a slightly higher, narrower bead. For the flattest possible profile on surface welds, a slight push angle is generally the better choice.
Can travel speed alone flatten a MIG bead without changing voltage?
Partially. Slowing travel speed allows more heat input per inch, which can help spread the puddle and reduce bead height. But if voltage is significantly too low, adjusting travel speed alone won’t fully compensate. Voltage and wire speed must still be balanced. Use travel speed as a fine-tuning tool after the primary electrical settings are reasonably dialed.
Is a flat weld always stronger than a convex weld?
Not automatically, but a flat or slightly convex weld with good toe blend generally indicates proper fusion. An excessively convex bead can mask poor fusion at the edges (underfusion), making it appear strong while being structurally weaker than it looks. A properly flat bead with smooth toes is generally a reliable indicator of adequate heat input and fusion depth.
Why does my weld lay flat on scrap but pile up on actual parts?
This often comes down to heat dissipation. Thicker parts or larger assemblies draw heat away faster than scrap pieces, effectively reducing your heat input at the weld zone. Try increasing voltage slightly or slowing travel speed when moving from test material to actual workpieces, especially on thick sections or when welding near large heat sinks like fixtures or clamps.
Does wire diameter affect bead flatness?
Yes. Thicker wire (0.035″ or 0.045″) requires higher voltage to run properly and tends to deposit more metal per pass. Running thick wire at insufficient voltage is a common cause of convex beads on heavier material. Conversely, using 0.023″ wire on thicker material forces multiple passes and can create buildup. Match wire diameter to material thickness: 0.023″–0.030″ for thin gauge, 0.035″ for general fabrication, 0.045″ for heavier structural work.
Flat, smooth MIG beads come from a balanced combination of voltage, wire speed, travel technique, and clean material — not any single adjustment. Start with voltage, match your wire feed to it, verify your gas mix, and clean the base metal before you weld. Make changes one variable at a time on scrap until the bead profile looks right, then transfer those settings to the actual work. That systematic approach will produce consistent results far more reliably than guessing.
