If you’ve just set up a MIG welder or you’re troubleshooting poor weld quality, polarity is one of the first things worth checking. Getting it wrong doesn’t just affect your results — it can make welding nearly impossible.
MIG welding typically uses DCEP (Direct Current Electrode Positive), meaning the welding wire (electrode) is connected to the positive terminal and the workpiece is connected to negative. This setup produces deeper penetration, a stable arc, and better overall weld quality. However, flux-core wire welding often requires DCEN (electrode negative), so polarity depends on the wire and process you’re using.
Why Polarity Matters in MIG Welding
Polarity controls how electrical current flows through the welding circuit. In a DC circuit, electrons travel from negative to positive. That direction of flow directly affects where heat is concentrated — and heat distribution is what determines penetration, arc stability, and bead appearance.
With DCEP (electrode positive), approximately two-thirds of the heat is generated at the electrode (wire) side. This creates a hotter, more focused arc that penetrates the base metal well and produces clean, consistent beads.
With DCEN (electrode negative), the heat distribution flips. The workpiece receives more heat, and the electrode runs cooler. This matters because certain wire types are designed to work specifically under these thermal conditions.

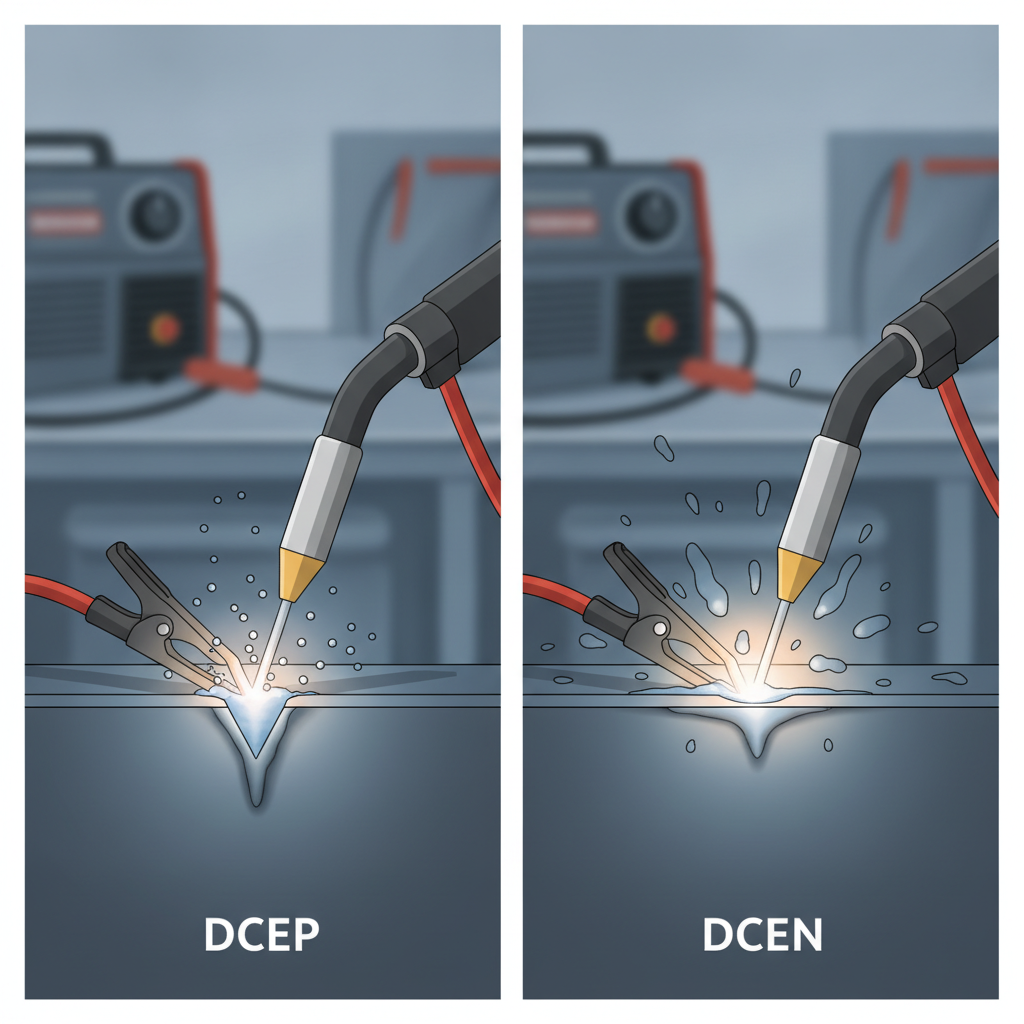

DCEP vs DCEN: The Practical Difference
| Setting | Electrode | Workpiece | Penetration | Best For |
|---|---|---|---|---|
| DCEP (Electrode Positive) | Positive (+) | Negative (−) | Deeper | Solid MIG wire, most metals |
| DCEN (Electrode Negative) | Negative (−) | Positive (+) | Shallower | Self-shielded flux-core wire |
DCEP is the standard for solid wire MIG welding with shielding gas — the most common setup in home shops, auto body work, and light fabrication.
DCEN is typically required for self-shielded flux-core wire (FCAW-S). Running self-shielded flux-core on the wrong polarity produces a rough, porous weld with poor fusion. Always check the wire manufacturer’s specification.
Solid Wire MIG Always Uses DCEP
When you’re running solid wire — such as ER70S-6, which is one of the most widely used MIG wires for mild steel — the correct polarity is always DCEP. The positive electrode creates a stable arc column and promotes adequate penetration through the shielding gas envelope.
Running solid wire on DCEN will typically produce:
- Erratic, popping arc behavior
- Poor fusion at the toes of the weld
- Excessive spatter
- A rough, lumpy bead profile
If you’re using a machine like the Lincoln Electric Weld-Pak 140 HD and experiencing any of those symptoms, checking polarity should be one of the first diagnostic steps.
Flux-Core Wire and Polarity: Where Confusion Starts
Flux-core welding creates most of the polarity confusion because two distinct process types exist:
Self-shielded flux-core (FCAW-S): No shielding gas is used. The flux coating inside the wire generates its own shielding. This process requires DCEN (electrode negative) to operate correctly.
Gas-shielded flux-core (FCAW-G): An external shielding gas is used in addition to the flux. This process typically runs on DCEP, similar to solid wire MIG.
The wire packaging will clearly state the required polarity. Ignoring it is a common beginner mistake that results in contaminated, weak welds.
Most entry-level multi-process machines like the Hobart Handler 140 include a polarity reversal diagram inside the wire compartment door, which makes switching straightforward.
How to Change Polarity on a MIG Welder
Most MIG welders with dual-polarity capability have two internal cable connections inside the wire feed compartment. The process takes under two minutes.
- Turn the machine completely off.
- Open the wire feed access panel (typically a hinged door on the front).
- Locate the two labeled terminals — usually marked (+) and (−).
- The torch lead and the work clamp lead each connect to one terminal.
- Swap the connections to switch from DCEP to DCEN, or vice versa.
- Close the panel before powering the machine back on.
Some machines use an external polarity switch or a labeled chart near the terminals. Always confirm against your specific machine’s manual, since terminal labeling varies by manufacturer.
AC Polarity: Does It Apply to MIG?
Standard MIG welding does not use AC (alternating current). MIG is a DC process. AC polarity is associated with TIG welding on aluminum, where the alternating cycle performs oxide cleaning.
If your MIG welder produces AC output, it’s not suitable for conventional MIG or flux-core applications. True MIG machines output DC, and the polarity direction (positive or negative) is what you’re controlling.
Common Polarity Mistakes and How to Spot Them
Running solid wire on DCEN: The arc sounds irregular and “crackly” rather than smooth. Spatter is heavy and the bead lacks proper tie-in at the edges. Switching to DCEP resolves it immediately.
Running self-shielded flux-core on DCEP: The weld appears porous and the bead surface is rough with excessive spatter. The weld may also show signs of incomplete fusion. Switching to DCEN cleans it up significantly.
Assuming polarity after a wire change: If you switch from solid wire to flux-core (or vice versa) without checking the polarity, you’ll waste material and wonder why the results degraded. Make checking polarity a habit whenever you change wire types.
FAQ
Does MIG welding use AC or DC?
MIG welding uses DC (direct current). Unlike TIG welding on aluminum, which can use AC for its oxide-cleaning effect, MIG welding requires a stable DC arc to function correctly. The polarity direction — positive or negative — is what changes depending on the wire and process being used.
What happens if you MIG weld with the wrong polarity?
Wrong polarity produces a noticeably unstable arc, heavy spatter, poor fusion, and an uneven bead profile. With solid wire on DCEN, the arc may pop and sputter. With self-shielded flux-core on DCEP, the weld will likely be porous and weak. Correcting polarity usually resolves these issues immediately.
Is flux-core welding always DCEN?
Not always. Self-shielded flux-core wire (FCAW-S) runs on DCEN, but gas-shielded flux-core wire (FCAW-G) typically runs on DCEP. The polarity requirement is specified on the wire spool label or the manufacturer’s data sheet. Always verify before welding.
Can I damage my welder by using the wrong polarity?
The welder itself is unlikely to be damaged by incorrect polarity. The main consequence is poor weld quality — bad arc characteristics, spatter, and weak fusion. However, consistently welding with wrong polarity means wasting wire, shielding gas, and time on unusable welds.
Why does polarity affect weld penetration?
In a DC welding circuit, electrons flow from negative to positive. With DCEP, more heat concentrates at the electrode (wire), which creates a forceful, focused arc that drives into the base material. With DCEN, heat shifts toward the workpiece surface, which produces shallower penetration but can be useful for thin materials where burn-through is a concern.
How do I know which polarity my wire requires?
The wire spool label and manufacturer’s technical data sheet both specify required polarity. On most wire packaging, you’ll see a notation like “DCEP” or “DC+” for electrode positive, or “DCEN” / “DC−” for electrode negative. When in doubt, check the manufacturer’s website for the specific wire grade.
Does wire diameter affect which polarity to use?
Wire diameter does not change the polarity requirement. A 0.030″ ER70S-6 and a 0.035″ ER70S-6 both require DCEP. What changes with diameter is the amperage range and travel speed, not the polarity. The process and wire chemistry determine polarity, not the physical wire size.
The One Rule Worth Remembering
Solid MIG wire always runs electrode positive (DCEP). Self-shielded flux-core runs electrode negative (DCEN). Gas-shielded flux-core typically runs DCEP. When your welds look rough and spatter is excessive, check polarity before adjusting wire speed or voltage — it’s often the first culprit and the easiest fix.
