Choosing the right welding gas can make the difference between a strong, clean weld and a failed joint. This comprehensive guide breaks down the essential welding gases, their applications, and provides practical charts to help you select the optimal gas mixture for your specific welding project.
Quick Answer
Welding gases serve as shielding agents that protect the weld pool from atmospheric contamination. The most common gases include argon (for TIG welding), CO2 (for basic MIG welding), and various argon-CO2 mixtures (for different steel applications). Gas selection depends on your welding process, base metal type, and desired weld characteristics.
Primary Welding Gas Categories

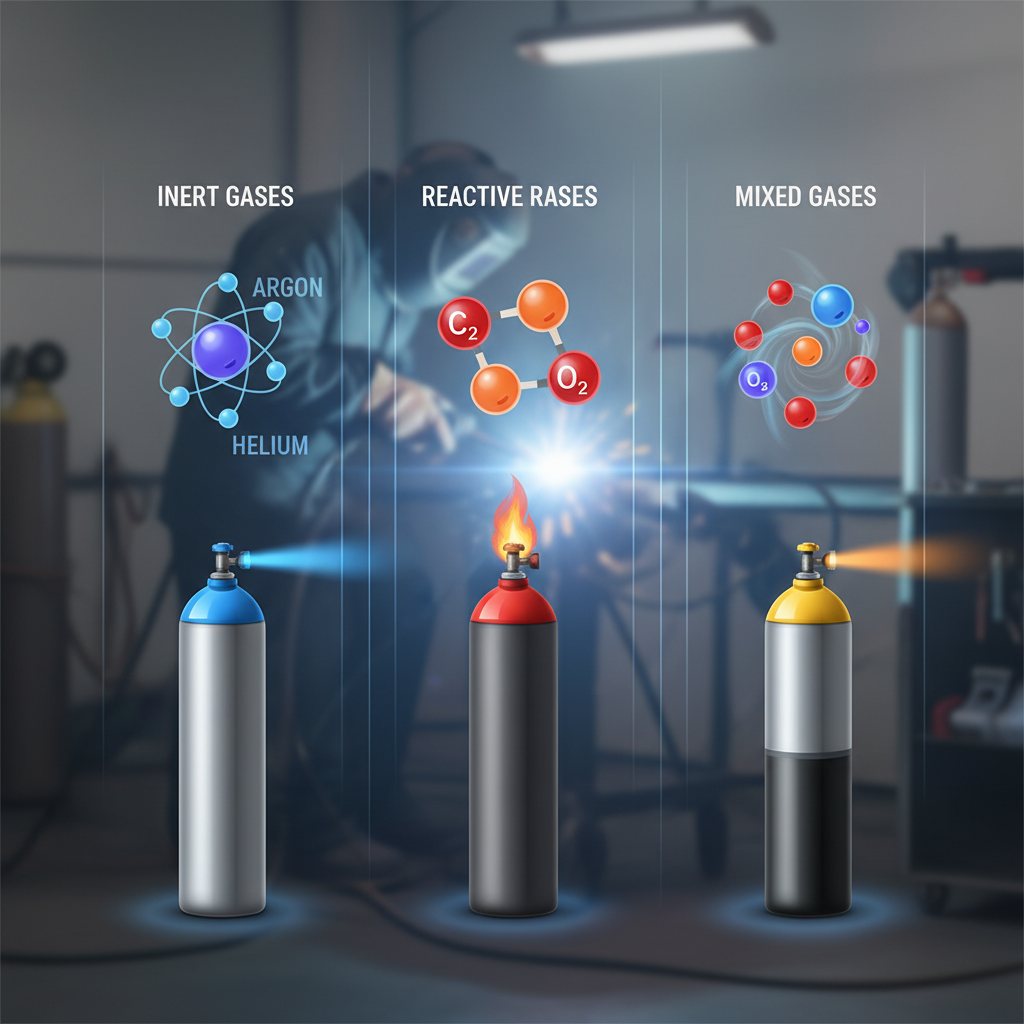

Welding gases fall into three main categories: inert gases, active gases, and gas mixtures. Each category serves specific purposes and works best with particular welding processes.
Inert gases like argon and helium don’t react chemically with the weld pool. They provide pure protection from atmospheric contamination. These gases work exceptionally well for TIG welding and aluminum applications.
Active gases such as carbon dioxide and oxygen participate in the welding process chemically. CO2 creates deeper penetration but produces more spatter. Oxygen increases fluidity but can cause oxidation if overused.
Gas mixtures combine the benefits of different gases while minimizing their drawbacks. Popular combinations include argon-CO2 blends for steel welding and argon-helium mixes for aluminum.
Essential Welding Gases and Their Properties
Argon (Ar)
Argon remains the most versatile welding gas across multiple processes. This colorless, odorless gas provides excellent arc stability and produces clean welds with minimal spatter.
Key characteristics:
– Density: 1.38 times heavier than air
– Excellent for TIG welding all metals
– Creates narrow, deep penetration profile
– Ideal for thin materials and precision work
Carbon Dioxide (CO2)
CO2 serves as the most economical shielding gas for steel welding. While it produces more spatter than mixed gases, it delivers deep penetration and strong welds.
Key characteristics:
– Most cost-effective option
– Deep penetration on thick steel
– Higher spatter levels
– Not suitable for non-ferrous metals
Helium (He)
Helium provides the hottest arc temperature among welding gases. Its low density requires higher flow rates, making it more expensive but valuable for specific applications.
Key characteristics:
– Hottest arc temperature
– Excellent heat input for thick materials
– Higher flow rates needed
– Premium cost compared to other gases
Gas Selection Chart by Welding Process
MIG/GMAW Gas Recommendations
| Material | Gas Mixture | Penetration | Spatter Level | Cost |
|---|---|---|---|---|
| Mild Steel (thin) | 75% Ar / 25% CO2 | Medium | Low | Medium |
| Mild Steel (thick) | 100% CO2 | Deep | High | Low |
| Stainless Steel | 98% Ar / 2% CO2 | Medium | Very Low | High |
| Aluminum | 100% Argon | Shallow | Very Low | Medium |
| Aluminum (thick) | 75% Ar / 25% He | Deep | Low | High |
TIG/GTAW Gas Recommendations
Steel applications: 100% Argon provides optimal results for most steel TIG welding. The stable arc and clean results make it the standard choice.
Aluminum welding: Pure argon works best for thin aluminum. For thicker sections over 1/2 inch, adding 25% helium improves heat input and travel speed.
Exotic metals: Titanium, magnesium, and other reactive metals require ultra-pure argon with minimal moisture content.
Gas Flow Rate Guidelines
Proper flow rates ensure adequate shielding without waste or turbulence. Too little gas allows contamination, while excessive flow creates turbulence that pulls atmospheric gases into the weld zone.
MIG welding flow rates:
– Indoor welding: 15-25 CFH (cubic feet per hour)
– Outdoor welding: 25-35 CFH
– Heavy sections: Up to 40 CFH
TIG welding flow rates:
– General applications: 10-20 CFH
– Cup size affects requirements
– Larger cups need higher flow rates
Field experience shows that many welders use excessive flow rates, wasting gas without improving weld quality. Start with manufacturer recommendations and adjust based on actual conditions.
Common Gas Mixture Applications
75% Argon / 25% CO2 (C25)
This popular mixture balances cost, penetration, and spatter control. It works excellently for general steel fabrication and provides good arc characteristics.
Best applications:
– Structural steel welding
– General fabrication
– Short circuit transfer mode
– Material thickness: 1/8″ to 1/2″
90% Argon / 10% CO2 (C10)
Higher argon content reduces spatter and improves arc stability. This mixture costs more but delivers superior weld appearance and reduced cleanup time.
Best applications:
– Precision steel work
– Spray transfer welding
– Thicker materials
– When appearance matters
98% Argon / 2% Oxygen
Adding small amounts of oxygen improves arc stability and weld pool fluidity on stainless steel. This mixture prevents undercut and improves tie-in.
Critical considerations:
– Only for stainless steel
– Oxygen content must stay below 5%
– Creates slight oxidation on weld surface
Gas Purity Requirements
Gas purity significantly affects weld quality, especially for critical applications. Standard welding grades work for most applications, but high-purity gases become necessary for aerospace, medical, or precision work.
Standard welding grade: 99.9% purity works for general fabrication and structural welding. This grade provides adequate protection at reasonable cost.
High-purity grade: 99.99% or higher purity becomes essential for titanium, aluminum aerospace components, and food-grade stainless steel applications.
Moisture content matters as much as purity. Water vapor in shielding gas creates porosity and hydrogen cracking in sensitive materials.
Storage and Handling Considerations
Proper gas storage ensures consistent welding performance and safety. Cylinders require secure storage away from heat sources and proper pressure regulation.
Cylinder storage requirements:
– Store upright and secured
– Separate fuel gases from oxidizers
– Maintain temperatures below 125°F
– Check for leaks regularly
Pressure regulation: Most welding applications require 15-25 PSI delivery pressure. Higher pressures don’t improve shielding and may cause flow meter inaccuracies.
Gas suppliers typically offer different cylinder sizes. Larger cylinders provide better value for high-volume operations, while smaller cylinders suit occasional use or portable applications.
Troubleshooting Gas-Related Weld Defects
Poor gas coverage creates specific weld defects that experienced welders recognize immediately. Understanding these patterns helps diagnose shielding problems quickly.
Porosity patterns: Random porosity throughout the weld indicates contaminated gas or inadequate flow. Porosity at weld start suggests insufficient pre-flow time.
Oxidation issues: Gray or dull weld appearance indicates oxygen contamination. This often results from leaky gas lines or improper gas selection.
Arc instability: Erratic arc behavior may indicate wrong gas type, contaminated gas, or flow rate problems. CO2 naturally creates less stable arcs than argon mixtures.
A common issue technicians encounter involves using the wrong gas mixture for spray transfer welding. Spray transfer requires minimum 80% argon content to maintain stable arc characteristics.
Cost Optimization Strategies
Balancing gas costs with weld quality requires understanding the true cost of different options. While CO2 costs less per cubic foot, argon mixtures often provide better overall value through reduced spatter and cleanup time.
Cost factors to consider:
– Initial gas cost per cubic foot
– Cleanup time reduction
– Rework elimination
– Travel speed improvements
In practice, many shops find that spending 20% more on gas mixtures saves 40% in total welding costs through improved productivity and quality.
Volume purchasing: Bulk gas systems or large cylinder exchanges provide significant savings for high-volume operations. Small shops benefit from cylinder exchange programs that eliminate testing and maintenance costs.
FAQ
What’s the difference between welding grade and industrial grade gases?
Welding grade gases have lower moisture content and fewer impurities. Industrial grade gases may contain contaminants that cause porosity or other weld defects in critical applications.
Can I use the same gas for MIG and TIG welding?
Pure argon works for both processes, but MIG welding on steel benefits from argon-CO2 mixtures that don’t work well for TIG welding. Match the gas to your specific process and material.
How do I know if my gas flow rate is correct?
Proper flow creates a steady, cone-shaped coverage pattern. Too little flow allows contamination, while excessive flow creates turbulence. Start with manufacturer recommendations and adjust based on conditions.
Why does my weld look gray instead of bright silver?
Gray welds typically indicate oxygen contamination from inadequate shielding, contaminated gas, or gas line leaks. Check your entire gas delivery system for problems.
How long do welding gas cylinders last?
Cylinder life depends on flow rate and usage time. A standard 80 cubic foot cylinder provides approximately 3-4 hours of continuous welding at 20 CFH flow rate.
What happens if I use the wrong shielding gas?
Wrong gas selection can cause porosity, poor penetration, excessive spatter, or arc instability. Some combinations may prevent proper arc establishment entirely.
Should I use pre-mixed gases or blend my own?
Pre-mixed gases ensure consistent ratios and eliminate blending equipment costs. Custom blending only makes sense for very specific applications or extremely high-volume operations.
Final Thoughts
Selecting the right welding gas involves balancing cost, performance, and application requirements. Pure argon provides excellent results for TIG welding and aluminum applications, while argon-CO2 mixtures offer the best compromise for steel MIG welding. Understanding gas properties, flow requirements, and cost implications helps you make informed decisions that improve both weld quality and productivity. Start with proven combinations for your specific applications, then fine-tune based on actual results and conditions in your shop.
