The Titanium MIG 140 is one of the most popular entry-to-mid-level welders sold through Harbor Freight, and for good reason. It’s capable, compact, and approachable — but getting clean welds out of it still requires knowing the right setup steps and settings.
To use the Titanium MIG 140 welder, set the correct wire feed speed and voltage for your material thickness, connect your work clamp to clean metal, hold the gun at a 10–15° angle, and pull the trigger while moving steadily along the joint. For steel under 3/16″, use flux-core wire without gas. For cleaner welds on thinner material, use .023″ solid wire with 75/25 argon/CO2 shielding gas.

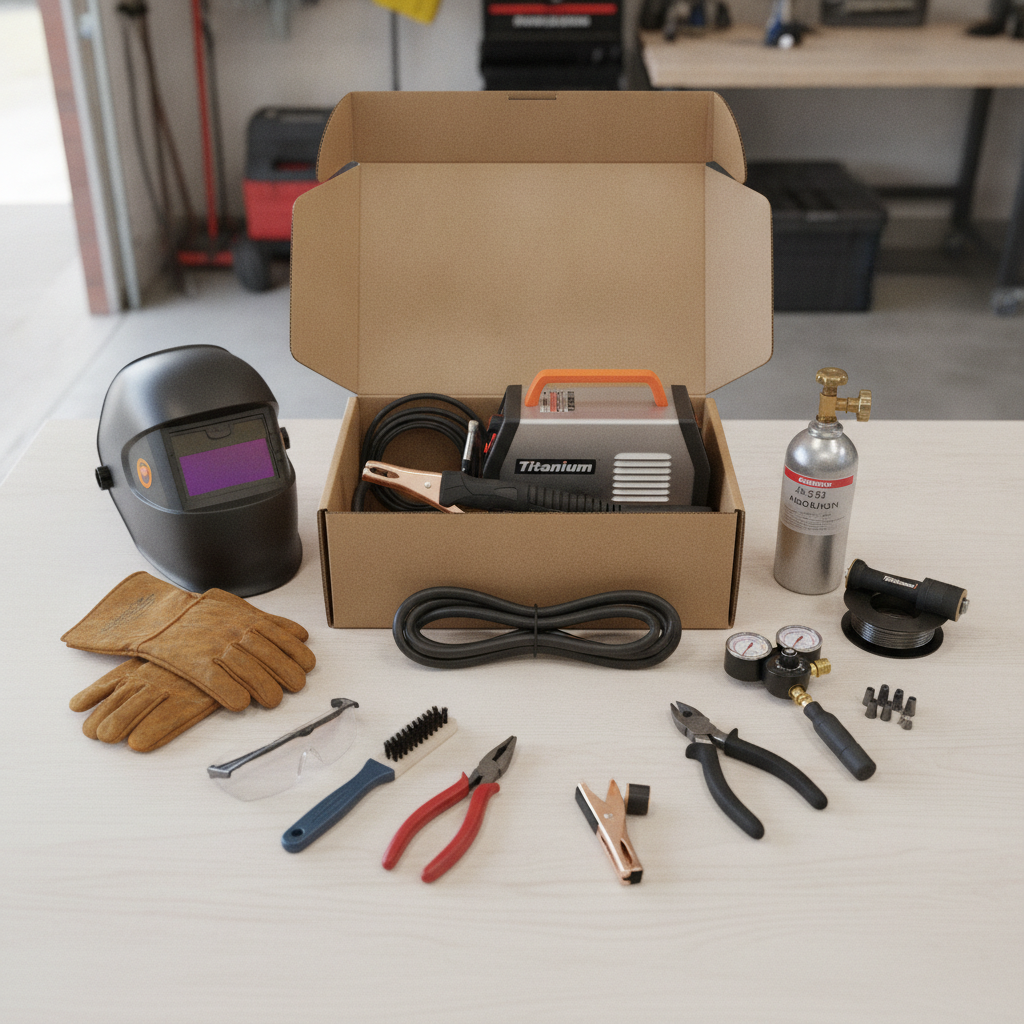

What Comes in the Box and What You’ll Need
Before your first weld, get familiar with what the Titanium MIG 140 includes:
- MIG gun with liner
- Work clamp and cable
- .030″ flux-core wire pre-loaded
- Gas hose fitting (for MIG operation)
- Spare contact tips
- Wire feed rollers for both .023″ and .030″ wire
You’ll also need safety gear that doesn’t come included:
- Auto-darkening welding helmet
- Leather welding gloves
- Long-sleeve natural fiber clothing
- Wire brush and angle grinder for prep
If you plan to run solid wire with shielding gas, you’ll need a separate cylinder of 75/25 argon/CO2 mix and a regulator.

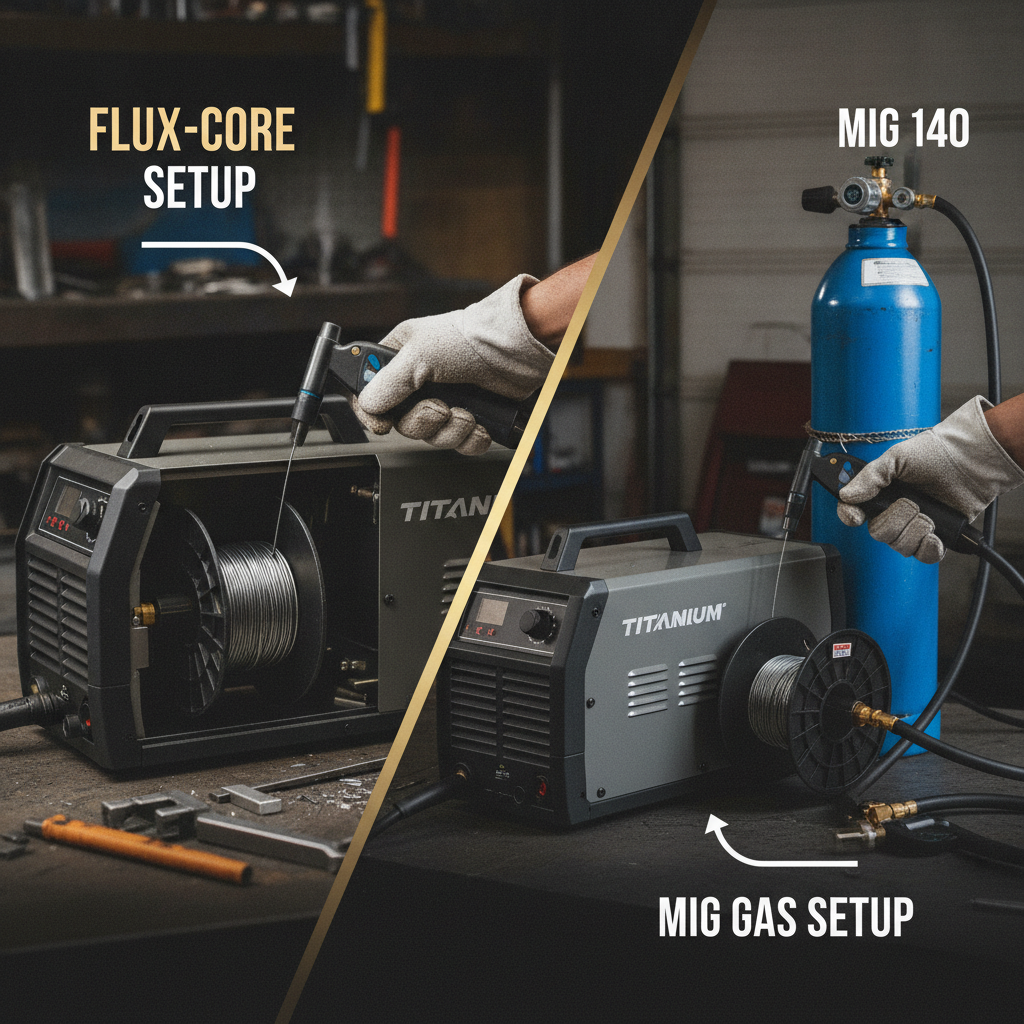

Flux-Core vs. MIG Gas Setup
The Titanium MIG 140 runs in two modes depending on your wire type.
Flux-Core (FCAW): No shielding gas required. The wire contains flux that creates its own protective gas cloud when burned. Good for outdoor use or when you don’t want to deal with a gas cylinder. Produces more spatter and a slag layer you’ll need to chip off.
MIG with Gas (GMAW): Requires a shielding gas cylinder. Produces cleaner, smoother welds with less spatter. Better for thinner materials and any application where weld appearance matters.
| Feature | Flux-Core | MIG with Gas |
|---|---|---|
| Shielding gas required | No | Yes |
| Best for | Outdoor use, thicker steel | Thin steel, clean welds |
| Spatter level | Higher | Lower |
| Slag removal needed | Yes | No |
| Ideal wire diameter | .030″ | .023″ or .030″ |
Setting Up the Machine Step by Step
1. Choose Your Wire and Mode
For flux-core welding, keep the .030″ wire already loaded. For gas MIG, swap to .023″ solid wire and change the contact tip and drive roll groove to match.
- Check that the polarity is set correctly:
- Flux-core: DCEN (electrode negative) — swap the leads inside the machine
- Solid wire with gas: DCEP (electrode positive) — standard configuration
The polarity swap terminals are accessible inside the front panel door of the Titanium MIG 140. This step is one most beginners skip and then wonder why their welds look rough.
2. Load or Verify Wire
Open the side panel. Confirm the wire feeds through the drive roll groove correctly and enters the gun liner without kinking. The tension knob should hold the wire firmly without crushing it — typically around 3–4 on the tension scale for .030″ wire.
Feed the wire through the gun by pressing the trigger (with the welder on but not near any metal) until several inches extend from the contact tip.
3. Set Voltage and Wire Speed
The Titanium MIG 140 uses a stepped voltage selector (typically 4 positions) and a continuous wire speed dial. Use this as a starting reference:
| Material Thickness | Voltage Setting | Wire Speed (approx.) |
|---|---|---|
| 18 gauge (.048″) | 1 | 2–3 |
| 1/8″ | 2 | 4–5 |
| 3/16″ | 3 | 5–6 |
| 1/4″ | 4 | 6–8 |
These are starting points. Always run a test bead on scrap before welding your actual workpiece.
4. Attach the Work Clamp
Clamp directly to the base metal as close to the weld joint as practical. Avoid clamping to painted, rusted, or coated surfaces — this creates resistance that causes arc instability and poor penetration.
5. If Using Gas, Set the Flow Rate
Open the regulator valve and set flow to 15–20 CFH (cubic feet per hour) for most indoor MIG welding. Higher flow wastes gas; lower flow risks porosity in the weld.
Welding Technique for Consistent Results
Hold the gun at a 10–15° drag angle — pointed slightly back toward the weld puddle, not forward. This improves penetration and visibility.
Maintain a contact-tip-to-work distance of about 3/8″ to 1/2″. Too close and you risk burn-back (wire fusing to the tip). Too far and you lose shielding coverage and arc stability.
Move at a steady pace. If you move too slowly, you build up excess material and risk burn-through on thin stock. Too fast, and the bead is narrow and lacks fusion.
For flux-core specifically, use a drag (pull) technique — always pulling the gun toward you. With gas MIG, either push or pull works, though pushing tends to produce a flatter, wider bead.
Common Problems and How to Fix Them
- Porosity (small holes in the weld):
- Dirty base metal — always grind or wire brush before welding
- Insufficient gas flow — check regulator and hose connections
- Running gas MIG outdoors in wind — add a windbreak or switch to flux-core
- Burn-through on thin metal:
- Voltage too high — drop one setting
- Travel speed too slow — move the gun faster
- Try .023″ wire instead of .030″
- Wire feeding inconsistently (stuttering arc):
- Drive roll tension too loose or too tight
- Liner clogged with debris — blow it out or replace
- Contact tip diameter doesn’t match wire size
- Excessive spatter:
- Voltage too low for the wire speed — increase voltage or reduce wire speed
- Wrong polarity for flux-core — check the polarity terminals
- Contaminated base metal
- Weld bead convex and not fusing to base metal:
- Travel speed too fast — slow down
- Voltage too low — increase one step and retest
Tips That Make a Real Difference
- Clean metal welds better than anything else you can do. Grinding rust, mill scale, or paint off the joint area before starting is the single most effective prep step.
- Run a test bead on scrap of the same thickness every time you change material or settings. It takes 30 seconds and saves you from fixing bad welds.
- The Titanium MIG 140’s duty cycle is around 20% at maximum output — meaning 2 minutes of welding per 10-minute period at full heat. Watch for thermal shutdown if you’re pushing it hard.
- If you’re welding anything thicker than 3/16″ regularly, you’ll want to bevel the joint edges to ensure full penetration.
- Keep spare .030″ and .023″ contact tips on hand. They wear out faster than most beginners expect.
FAQ
Can the Titanium MIG 140 weld aluminum?
Not effectively in stock form. Aluminum requires a spool gun or push-pull setup, a separate liner, and 100% argon shielding gas. The Titanium MIG 140 doesn’t natively support a spool gun, so aluminum welding is not a practical use case for this machine.
What’s the maximum thickness the Titanium MIG 140 can weld?
Harbor Freight rates it at 1/4″ mild steel in a single pass with flux-core wire. In practice, 3/16″ is more consistently achievable with good fusion. Beyond 1/4″, you’d need multiple passes and careful technique, or a higher-amperage machine.
Do I need gas to use the Titanium MIG 140?
No. It ships ready to run flux-core wire without gas. Gas is optional and used when you want cleaner welds on thinner material. Many users run the machine exclusively with flux-core and get solid results, especially for automotive frame work, fencing, or structural steel.
What’s the difference between pushing and pulling the weld gun?
Pushing (forehand) moves the gun away from the completed weld, producing a wider, flatter bead with less penetration. Pulling (backhand/drag) moves toward the completed weld, concentrating heat and increasing penetration depth. For flux-core, pulling is generally preferred. For gas MIG on thin sheet metal, pushing tends to work better.
Why does my wire keep burning back to the tip?
This usually means the contact-tip-to-work distance is too short, or the wire speed is too slow for the voltage setting. Increase wire speed slightly or maintain a slightly longer stickout. Also check that the contact tip isn’t partially blocked — replace it if in doubt.
Can the Titanium MIG 140 run on 110V household current?
Yes. It runs on standard 120V, 20-amp outlets. For best performance, use a dedicated 20-amp circuit rather than a shared extension cord on a general household circuit. A short, heavy-gauge extension cord (10 or 12 AWG) is acceptable if needed.
What shielding gas should I use with solid wire?
75% argon / 25% CO2, commonly called C25, is the standard choice for mild steel MIG welding. It balances good penetration with low spatter and a smooth arc. 100% CO2 is cheaper but produces more spatter. 100% argon is not suitable for steel.
Getting clean, strong welds from the Titanium MIG 140 comes down to three things: correct polarity for your wire type, dialed-in settings for your material thickness, and clean base metal. Master those three and the machine will perform well above what its price suggests. Start on scrap, take notes on what settings worked, and build from there.
