304 stainless steel shows up constantly in fabrication work — exhaust components, food-grade equipment, handrails, brackets, and kitchen fixtures. MIG welding it is entirely doable, but it punishes the same habits that work perfectly on mild steel.
MIG welding 304 stainless steel requires a tri-mix shielding gas (typically 90% helium / 7.5% argon / 2.5% CO₂), an ER308L stainless wire, DCEP polarity, and careful heat control to prevent warping and chromium carbide precipitation. Settings vary by thickness, but most thin-to-medium gauge work runs in short-circuit or spray transfer. Preparation, gas coverage, and travel speed matter significantly more than they do with mild steel.

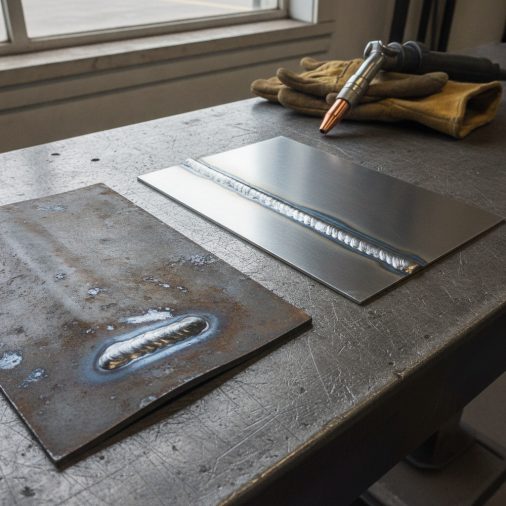

Why 304 Stainless Doesn’t Behave Like Mild Steel
304 is an austenitic stainless steel containing roughly 18% chromium and 8% nickel. That chromium content gives it corrosion resistance, but it also creates a specific welding challenge: heat doesn’t distribute the same way it does in mild steel.
Stainless steel has lower thermal conductivity and higher thermal expansion than mild steel. Heat concentrates near the arc rather than spreading outward, which makes burn-through and warping much more likely — especially on thinner gauge material. Running too slow, dwelling in one spot, or using settings that would work fine on 3/16″ mild steel can destroy a stainless workpiece.
The chromium content also introduces a phenomenon called sensitization. When the heat-affected zone stays too long above roughly 800°F (427°C), chromium carbides can precipitate along grain boundaries, reducing corrosion resistance in that area. This is one of the reasons welding stainless steel is genuinely more demanding than it first appears.

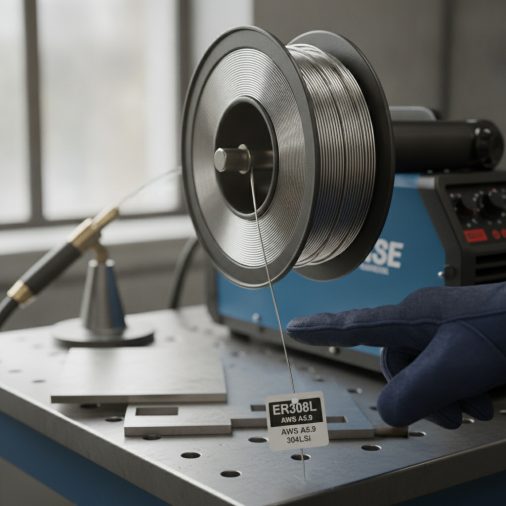

Filler Metal: Why ER308L Is the Standard Choice
For welding 304 stainless to itself, ER308L is the widely accepted filler wire. The “L” designation indicates low carbon content (0.03% maximum), which reduces the risk of sensitization during welding. Higher carbon grades can perform adequately in applications where post-weld corrosion resistance isn’t critical, but ER308L is the safer default for most work.
Wire diameter typically comes down to material thickness:
– 0.023″ or 0.030″ — thin gauge sheet metal under 3/16″
– 0.030″ or 0.035″ — general fabrication in the 3/16″ to 3/8″ range
– 0.035″ — heavier sections where a more capable machine is available
Using mild steel wire such as ER70S-6 on 304 stainless is not appropriate. The weld metal composition will be wrong, corrosion resistance will be compromised, and mechanical properties will not match the base material.
Shielding Gas Selection for 304 Stainless MIG
This is where many welders make an expensive mistake. The gas mixture used for mild steel — C25 (75% argon / 25% CO₂) — is not suitable for stainless steel MIG welding. High CO₂ content causes excessive oxidation of the weld bead, burns off chromium, and degrades corrosion resistance in the finished weld.
The standard shielding gas for MIG welding 304 stainless is a tri-mix blend: approximately 90% helium, 7.5% argon, and 2.5% CO₂. The small CO₂ fraction stabilizes the arc without creating the oxidation problems associated with higher CO₂ percentages. Helium adds heat energy, which improves fusion and allows for faster travel speed.
Some fabricators also use 98% argon / 2% CO₂ or 98% argon / 2% oxygen blends, which work reasonably well for thin material in short-circuit transfer. The correct shielding gas for stainless MIG welding depends partly on transfer mode, material thickness, and the level of corrosion resistance required in service.
Flow rate typically runs between 20–35 CFH (cubic feet per hour) depending on conditions. In a drafty environment, bump flow rate toward the higher end and consider a wind barrier rather than simply opening the valve further.
Machine Settings: Starting Points by Thickness
There is no single correct setting for MIG welding 304 stainless. The correct starting point depends on material thickness, wire diameter, welding position, joint type, and the specific machine in use. Always check the machine’s door chart and the wire manufacturer’s data sheet first.
The table below gives approximate starting ranges for flat or horizontal position welding with ER308L wire.
| Material Thickness | Wire Diameter | Voltage (Approx.) | Wire Feed Speed (Approx.) | Transfer Mode |
|---|---|---|---|---|
| 18 gauge (0.048″) | 0.023″ | 15–17 V | 100–130 IPM | Short-circuit |
| 16 gauge (0.060″) | 0.023″–0.030″ | 16–18 V | 120–160 IPM | Short-circuit |
| 12 gauge (0.105″) | 0.030″ | 17–19 V | 150–200 IPM | Short-circuit |
| 3/16″ | 0.030″–0.035″ | 19–21 V | 200–280 IPM | Short-circuit / globular |
| 1/4″ | 0.035″ | 22–25 V | 300–400 IPM | Spray transfer |
These are approximate starting ranges only. Adjust based on your machine, joint fit-up, and observed bead behavior.
Polarity is DCEP (direct current electrode positive), which is standard for MIG welding. Confirm polarity before starting, particularly if the machine was previously set up for flux-core welding, which typically runs DCEN.
Surface Preparation and Contamination Control
304 stainless is unforgiving about contamination. Any carbon steel particles transferred onto the stainless surface — from grinding wheels, brushes, or tools used on mild steel — will corrode and can compromise the weld area.
Before welding:
– Degrease the base metal with acetone or a stainless-compatible cleaner
– Use only grinding wheels, flap discs, and wire brushes dedicated to stainless steel
– Avoid touching the clean joint area with bare hands after degreasing
– Remove any mill scale, oxide, or contamination from the joint faces
A dedicated stainless wire brush — used exclusively on stainless and never on mild steel — should be part of the workflow. Cross-contaminating brushes is one of the most common causes of unexpected porosity and corrosion spots on finished stainless welds.
Technique: Heat Control and Travel Speed
Fast travel speed is one of the most important habits to develop when MIG welding 304 stainless. Dwelling too long in one spot deposits excess heat, causes warping, and increases the risk of sensitization in the heat-affected zone.
Practical technique adjustments for stainless:
– Push rather than pull — a push angle (10°–15° torch lean in the direction of travel) produces a flatter bead with slightly less penetration, which helps on thinner material
– Travel faster than you would on mild steel — the puddle should move steadily without pausing
– Avoid weaving on thin material — a straight stringer bead limits heat input more effectively
– Use tacking sequences — tack frequently along the joint before running a full pass to control distortion
– Allow cooling between passes — on multi-pass work, let the joint cool below 300°F (149°C) before depositing additional beads
For thin-gauge work, a backing strip of copper or aluminum under the joint can act as a heat sink and help prevent burn-through. The weld won’t bond to copper, so it can be removed cleanly after the joint cools.
Common Defects and What Causes Them
| Defect | Likely Cause | Practical Fix |
|---|---|---|
| Porosity | Contaminated base metal, wrong gas, gas leaks, drafts | Clean surfaces, verify gas, check fittings, use wind barrier |
| Warping / distortion | Excessive heat input, wrong sequence, no tacking | Reduce heat, tack more frequently, weld in shorter passes |
| Sugaring (black oxidation on reverse) | No back purge on tube or pipe welds | Use argon back-purge or backing gas on enclosed sections |
| Lack of fusion | Travel too fast, voltage too low, poor fit-up | Increase heat slightly, slow travel, improve joint fit-up |
| Excessive spatter | CO₂ content too high, voltage or WFS mismatch | Verify gas blend, adjust settings incrementally |
| Discoloration / heat tint | Excessive heat, poor gas coverage | Increase travel speed, check flow rate, verify torch angle |
Sugaring — the black, granular oxidation that appears on the back side of stainless pipe or tube welds — indicates oxygen contamination on the root pass. Back-purging with argon prevents this and preserves corrosion resistance on the inside surface of enclosed sections.
Post-Weld Treatment
After welding 304 stainless, the heat-affected zone typically shows heat tint ranging from gold to blue to gray depending on peak temperature. This discoloration indicates surface oxidation and a reduction in the passive chromium oxide layer that gives stainless its corrosion resistance.
For cosmetic or lightly corrosive environments, brushing or grinding the heat tint back may be sufficient. For applications where corrosion resistance matters — food equipment, marine environments, chemical exposure — post-weld passivation is more appropriate.
Passivation typically involves cleaning with a stainless-specific pickling paste or acid solution, followed by rinsing. This removes the heat-affected oxide layer and restores the passive surface layer. Follow the product manufacturer’s instructions carefully, as these chemicals are corrosive and require appropriate PPE including nitrile or chemical-resistant gloves, eye protection, and adequate ventilation.
Grinding or polishing with abrasives not dedicated to stainless can re-introduce carbon steel contamination, which defeats the purpose of passivation.
Safety Considerations
MIG welding 304 stainless generates chromium fumes. Hexavalent chromium (Cr(VI)) is classified as a respiratory carcinogen and is a genuine workplace hazard — not a theoretical one.
Essential safety precautions:
– Weld in a well-ventilated space or use local exhaust ventilation positioned at the source
– Wear a welding helmet with a minimum shade 10 lens; auto-darkening helmets should meet ANSI Z87.1
– Use flame-resistant welding clothing, leather gloves, and appropriate footwear
– Do not rely on a general-purpose dust mask — respiratory protection for Cr(VI) requires a properly fitted NIOSH-approved respirator rated for metal fumes
– Follow your employer’s procedures and applicable OSHA or local regulatory requirements for stainless steel welding fume exposure
For fabricators using a machine such as the Miller Multimatic 215, the built-in process documentation and door chart provide a practical starting point, but fume control and PPE are non-negotiable regardless of machine type.
FAQ
What wire should I use to MIG weld 304 stainless steel?
ER308L is the standard filler wire for MIG welding 304 stainless to itself. The “L” grade limits carbon content to 0.03% maximum, which reduces the risk of sensitization and intergranular corrosion in the heat-affected zone. For dissimilar metal joints or different stainless grades, the filler selection changes. Always confirm compatibility with the base material before starting.
Can I use C25 (75/25 argon/CO₂) shielding gas on 304 stainless?
No. The 25% CO₂ content in C25 gas causes excessive oxidation of the weld bead, burns off chromium, and degrades corrosion resistance. Stainless steel MIG welding requires a dedicated gas mix such as tri-mix (90He/7.5Ar/2.5CO₂) or a low-CO₂ argon blend. Using C25 will produce a rough, oxidized bead that lacks the corrosion resistance expected from 304 stainless.
Why is my 304 stainless warping so badly when I MIG weld it?
Warping happens when heat builds up unevenly across the joint. Stainless steel has higher thermal expansion and lower conductivity than mild steel, so it distorts more readily. The most effective controls are: faster travel speed, shorter weld segments, frequent tacking before running full passes, and allowing the joint to cool between passes. Backstep welding sequences also help distribute heat more evenly across longer joints.
Do I need to back-purge when MIG welding 304 stainless tube or pipe?
For pipe or tube welds where the inside surface will be exposed to a corrosive environment, back-purging with argon is strongly recommended. Without it, oxygen contacts the hot root pass and causes sugaring — a black, granular oxidation that destroys the passive layer on the weld’s interior surface. In purely structural applications where the inside surface is unexposed, back-purging may be less critical, but it remains best practice.
What polarity do I use for MIG welding stainless steel?
MIG welding 304 stainless uses DCEP — direct current electrode positive, sometimes called reverse polarity. This is standard for all solid-wire MIG welding. If the machine was previously set up for flux-core welding (which typically runs DCEN), confirm polarity has been switched before striking an arc on stainless.
Is TIG welding better than MIG for welding 304 stainless steel?
TIG welding offers greater control over heat input and produces a cleaner, more aesthetically precise weld with lower distortion risk — which is why it’s preferred for thin-gauge, sanitary, and high-appearance stainless work. The difference between MIG and TIG welding comes down to deposition rate, operator control, and application. MIG is faster and more practical for structural fabrication, heavier sections, and production work where appearance is secondary to efficiency.
Can a small hobby MIG welder handle 304 stainless steel?
Many compact inverter MIG welders can handle thin-gauge 304 stainless, provided they support the correct polarity, accept 0.023″ or 0.030″ wire, and can run with an external shielding gas cylinder. The limitation is typically material thickness and duty cycle, not the process itself. Check whether the machine’s output range suits the material gauge, and refer to the manufacturer’s documentation for gas and wire compatibility.
Keep Heat Low, Prep Thorough, and Gas Correct
The biggest variable in successful MIG welding of 304 stainless isn’t machine brand or wire cost — it’s heat management. Move fast enough to prevent heat buildup, use ER308L wire with the correct tri-mix or low-CO₂ gas, and prepare the joint surface carefully with dedicated stainless tools. Fume control and respiratory protection are non-negotiable given the hexavalent chromium exposure risk. Get those fundamentals right, and the results on 304 stainless will be consistent and structurally sound.
