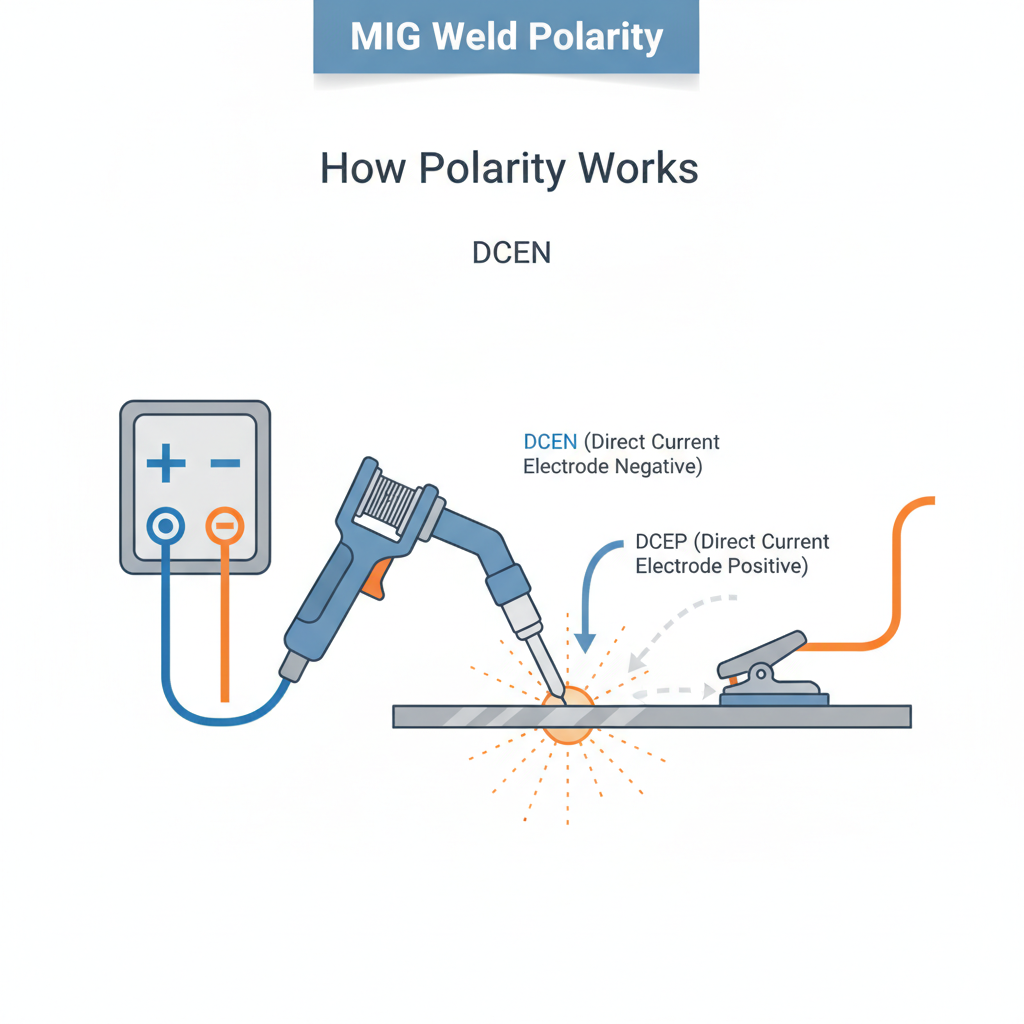

How Polarity Works in a MIG Welder
Why Standard MIG Welding Uses DCEP
Flux Core Wire and Why It Uses DCEN
Flux core welding flips the polarity requirement. Most self-shielded flux core wires — the type used without shielding gas — are designed for DCEN. With DCEN, more heat concentrates at the base metal rather than the wire. This produces a faster deposition rate, which is useful for thicker material and outdoor applications where wind resistance matters. The flux inside the wire provides its own shielding and slag system, so the heat distribution works differently than a bare solid wire. A common source of confusion: gas-shielded flux core wire (FCAW-G), such as E71T-1, typically requires DCEP — not DCEN. Always check the wire manufacturer’s specification, not just the wire type.| Wire Type | Typical Polarity | Shielding Required |
|---|---|---|
| Solid wire (ER70S-6, ER308L, etc.) | DCEP | Shielding gas required |
| Self-shielded flux core (E71T-11) | DCEN | No gas needed |
| Gas-shielded flux core (E71T-1) | DCEP | Shielding gas required |
| Aluminum (ER4043, ER5356) | DCEP | Argon required |
How to Change Polarity on a MIG Welder
Most MIG welders designed for dual use — solid wire and flux core — have a polarity changeover panel inside the wire feed compartment. The process is straightforward. 1. Turn the machine completely off and unplug it. 2. Open the wire feed door or side panel. 3. Locate the two lead connections labeled positive (+) and negative (−), or “electrode” and “work.” 4. Swap the connections: move the lead from positive to negative and vice versa. 5. Close the panel, reconnect power, and verify the work clamp is on the correct terminal. Some machines, like the Lincoln Electric Weld-Pak 140 HD, have clearly labeled polarity diagrams printed inside the wire compartment door, which makes this process faster and less prone to error. Always double-check after switching. Running solid wire on DCEN — or flux core on DCEP when DCEP isn’t specified — produces immediately noticeable weld quality problems.What Happens When Polarity Is Wrong
Incorrect polarity doesn’t always cause an obvious failure. The arc still forms, the wire still feeds, and you can still deposit metal. That’s part of why polarity mistakes sometimes go unnoticed for longer than they should. Symptoms of wrong polarity in MIG welding: – Excessive spatter — more than usual even with correct gas and voltage – Inconsistent arc — the arc feels erratic or difficult to control – Poor penetration — the bead sits on top of the base metal rather than fusing into it – Porosity — small holes or voids in the finished weld – Irregular wire burn-off — the wire may stub or burn back inconsistently If you’ve recently changed wire type and suddenly notice any of these symptoms, polarity is the first thing to check. Whether MIG welding runs on positive or negative depends entirely on what wire you’re running, and mixing them up is more common than most beginners expect.Polarity and Thin Metal Welding
Polarity becomes especially relevant when welding thin gauge material. DCEP produces concentrated heat at the electrode side of the circuit, which — combined with proper voltage and wire speed — gives you more control over heat input at the workpiece. Running incorrect polarity on thin metal amplifies burn-through risk. You lose the predictable arc behavior that helps control the puddle. If you’re already working close to the material’s burn-through threshold, wrong polarity can push you over it. For anyone working with thin sheet metal, understanding how to control heat when MIG welding thin metal starts with having the correct polarity dialed in before adjusting anything else.AC vs. DC Polarity in MIG Welding
Standard MIG welders run on DC (direct current). AC (alternating current) alternates direction 60 times per second, which creates an unstable arc for most MIG processes. AC is used in some specialized applications — notably certain TIG aluminum welding setups — but not in conventional MIG. If a machine is outputting AC at the torch, the arc will be noticeably rough and difficult to control. This is rarely a polarity setting issue; it’s typically a machine fault or an improper connection. Most inverter-based MIG welders produce clean DC output by design.Polarity for Aluminum MIG Welding
Aluminum MIG welding uses DCEP, same as mild steel solid wire. The difference lies in the shielding gas and wire type — 100% argon with ER4043 or ER5356 wire. Polarity itself stays the same. One reason DCEP matters even more with aluminum is the cathodic cleaning effect. At DCEP, the arc action breaks up the aluminum oxide layer on the base metal surface, which has a much higher melting point than the aluminum underneath. Without this oxide removal, proper fusion becomes extremely difficult. Getting the correct settings for aluminum MIG welding involves gas selection, wire speed, and voltage — but all of it builds on the correct DCEP polarity foundation.FAQ
Does polarity affect weld strength? Yes, directly. Incorrect polarity reduces fusion and penetration, which weakens the joint even if the bead looks acceptable on the surface. A weld made with wrong polarity may appear structurally sound but fail under load because the wire hasn’t properly fused into the base metal. Can I MIG weld with AC instead of DC? Conventional MIG welding requires DC. AC produces an unstable arc that makes consistent bead control nearly impossible with solid wire or flux core. Some older transformer-based welders output AC, but they are generally not suitable for quality MIG work. Why does my flux core wire say DCEN but some say DCEP? Self-shielded flux core wires (no gas required) are typically designed for DCEN, while gas-shielded flux core wires usually run DCEP. The difference comes down to wire chemistry and the shielding mechanism. Always read the specification printed on the wire spool or the manufacturer’s data sheet rather than assuming based on wire type alone. What is reverse polarity in welding? Reverse polarity is another name for DCEP (Direct Current Electrode Positive). The term comes from the historical convention where DCEN was considered “straight” polarity — with current flowing from electrode to work — and DCEP reversed that direction. In modern welding, DCEP is the standard for most MIG solid wire applications. How do I know if my welder polarity is set correctly? Check the connection diagram inside the wire feed compartment and compare it against the wire manufacturer’s specification. If the machine has just been switched from flux core to solid wire (or vice versa), verify that the leads were swapped accordingly. Running a test bead and observing arc stability, spatter level, and bead profile will also reveal polarity problems quickly. Does wire diameter change the polarity requirement? No. Wire diameter affects voltage, wire feed speed, and amperage — not polarity. A 0.023″ ER70S-6 wire and a 0.035″ ER70S-6 wire both require DCEP. The polarity is determined by the wire type and shielding method, not the diameter. What happens if I accidentally weld with wrong polarity for a long time? The welds will have consistently poor penetration and fusion, even if they look passable from the outside. In structural or load-bearing applications, this is a real safety concern. If you suspect extended wrong-polarity welding on critical joints, those welds should be evaluated and likely redone.Polarity is one of the few settings on a MIG welder where there’s no middle ground — it’s either right or wrong for the wire you’re running. Solid wire with shielding gas means DCEP. Self-shielded flux core means DCEN. Gas-shielded flux core typically means DCEP. When weld quality drops without an obvious cause, checking polarity before adjusting voltage or wire speed will save a lot of wasted troubleshooting time.
